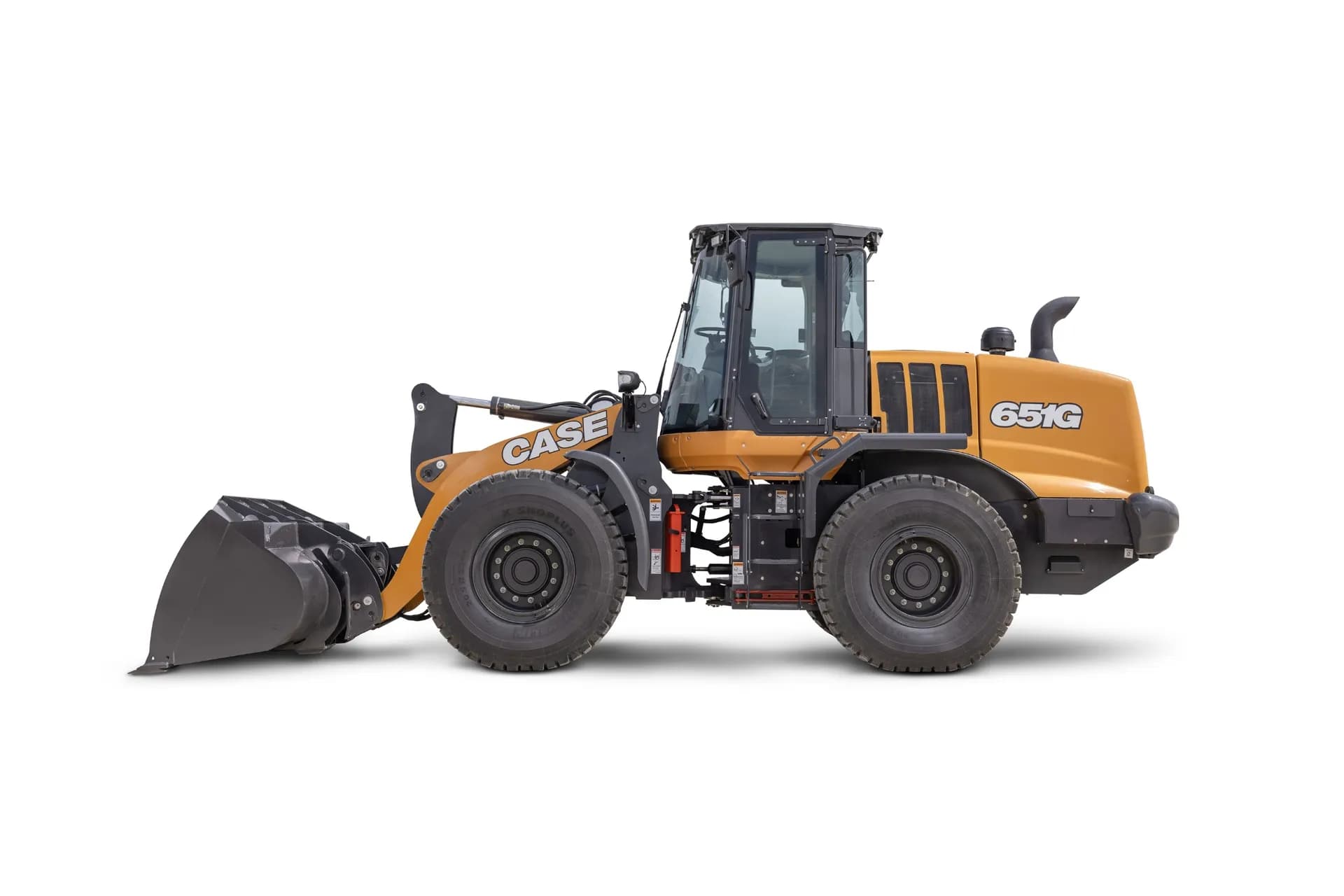

651G
Productivity runs in the family.
The CASE 651G is the newest member of our large wheel loader family, offering increased operating weight, lifting capacity, and faster loader cycle times for enhanced productivity.
172 hpHorsepower30,890 lbOperating Weight
Horsepower
172 hp
Operating Weight
30,890 lb
Hinge Pin Height
+4 in.
Pump Capacity
Increased flow
Bucket Design
Curved for retention
Overview
Take a Closer Look
Take a quick tour and get a good look at the features and technology that make the 651G the kind of all-around, highly productive, easy-to-operate workhorse that keeps you running efficiently and making money from the minute operators climb into its comfortable cab.
Features
Explore 651G Features
Specifications
651G Specs
Enhanced Productivity
- Increased operating weight and lifting capacity for demanding tasks.
- Larger pump capacity for faster loader cycle times.
- New curved bucket design for better material retention.
Improved Clearance
- Hinge pin height raised 4 inches for more clearance when loading trucks and TMR mixers.
Specifications
Engine
ModelCASE/FPT F4HFE613W*B007
EmissionsTier 4 Final Certified Selective Catalytic Reduction (SCR) with Diesel Oxidation Catalyst
Horsepower172 hp | 128 kW
Drivetrain
Transmission4F/3R Selectable autoshift /manual shift transmission
Control ModuleElectronic Control Module – programmable, computer controlled proportional shifting with programmable gear selection
Shift ControlSingle lever electronic shift control F/N/R switch in loader control handle
FeaturesDownshift button, Torque converter
Hydraulics
Loader ControlAdjustable Electro-hydraulic - EH loader control with one auxiliary function and 3 configurable buttons
Ride ControlRide Control™
CouplerLocking hydraulics for hydraulic coupler
Electrical
Strobe LightsIntegrated 4-corner strobe
Flood Lights2 Front and 2 rear halogen flood lights
Driving Headlights2 Front driving headlights – high/low beam with integrated turn signals
Stop/Tail Lights2 LED stop/tail lights with integrated turn signals
Operator Environment (Standard)
CabROPS cab
Climate ControlAC w/ heat
Display8” LCD touchscreen display
ArmrestAdjustable armrest w/ 3 configurable buttons
SeatFully adjustable, suspension seat w/ headrest
RadioRadio ready – Includes antenna, speakers, wiring, radio fuse, 20A converter, 12-volt auxiliary power outlet, and USB outlet.
Other Standard Equipment
CounterweightHeavy counterweight
TelematicsmyCASEConstruction – includes hardware and a 7-yr Advanced data subscription
Operator Environment (Optional)
SeatCloth-covered heated air-suspension seat with headrest
MirrorsExternal heated rear view mirrors
LightsFront LED driving/headlights/LED heated lens
Loader (Optional)
XR VersionXR extended reach version
XT VersionXT tool carrier version
Auxiliary HydraulicsAttachment auxiliary hydraulics
Coupler SystemsJRB or ACS compatible
Tires (Optional)
Type20.5-R25 radial Michelin SnoPlus
Cab & Comfort
Built for the Operator
Operator Comfort
- Spacious ROPS cab with AC and heat.
- 8-inch LCD touchscreen display for intuitive control.
- Fully adjustable, suspension seat with headrest for reduced fatigue.
- Adjustable armrest with 3 configurable buttons.
Gallery

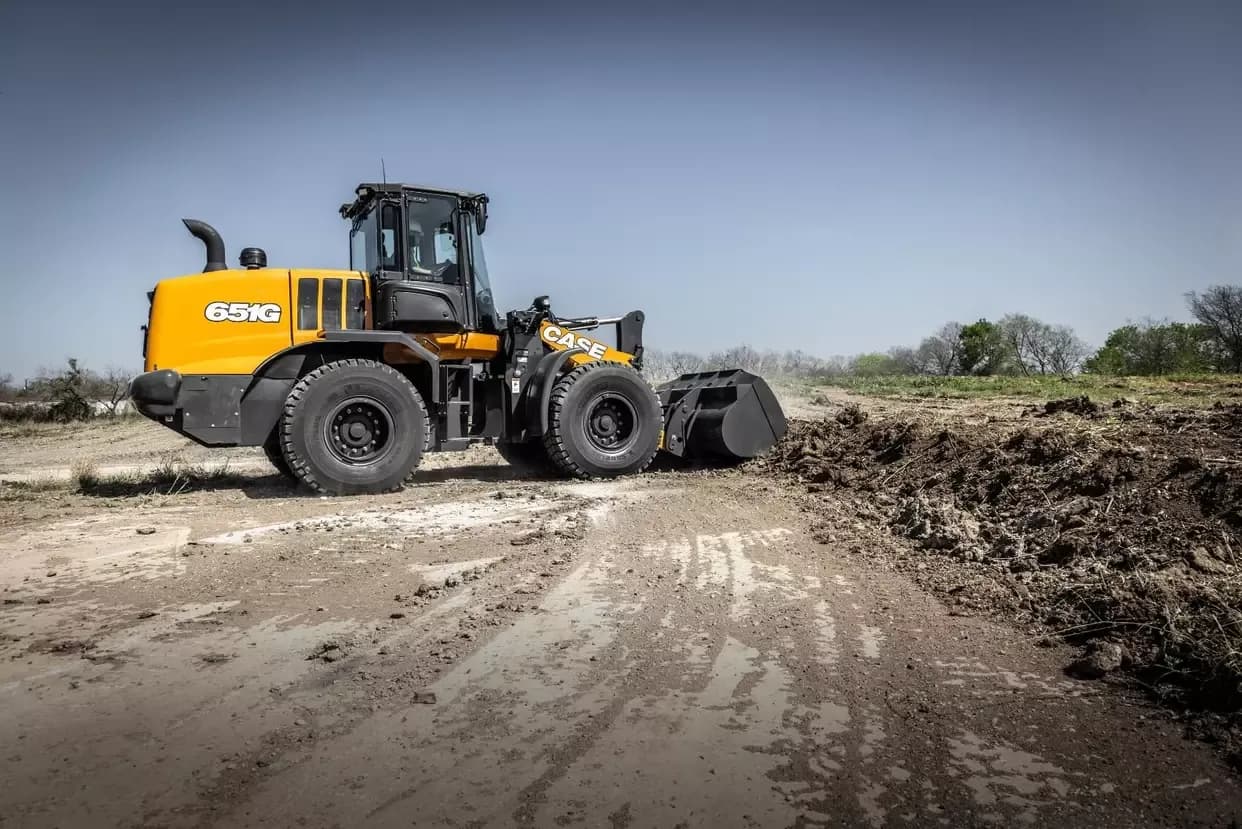

See the 651G in Action
