SSV75
Operate with precision, efficiency, and confidence.

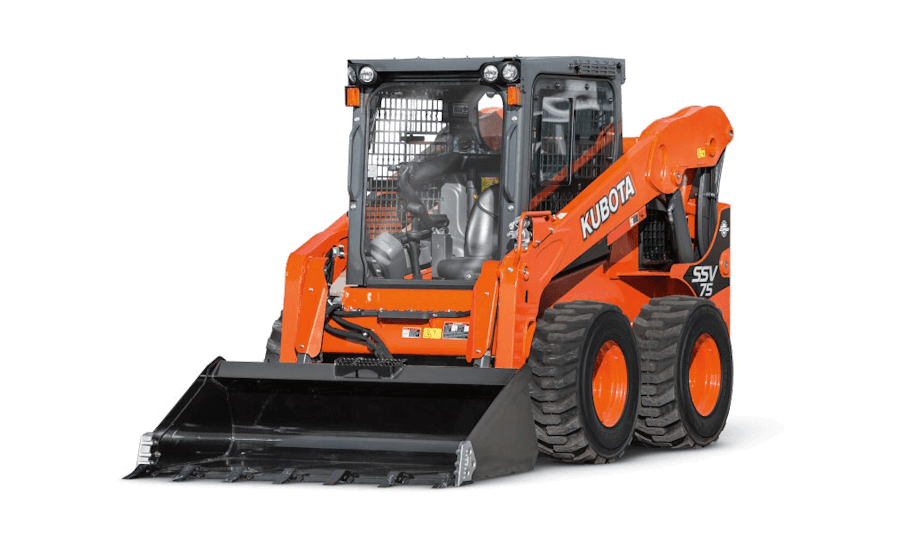

The Kubota SSV75 Skid Steer Loader combines quality craftsmanship with precision and efficiency, making it ideal for a variety of tasks with attachments like pallet forks, bale spears, grapples, or augers.
71.6 HPHorsepower8,245 - 8,466 lbOperating Weight5,380 lbTipping Load5,884 lbfBucket Breakout Force
Horsepower
71.6 HP
Operating Weight
8,245 - 8,466 lb
Tipping Load
5,380 lb
Max Travel Speed
11.8 mph
Fuel Capacity
26.9 gal
Overview
Discover the SSV75
- Highest Retained Value and 5-year residual value in its class (2021 Equipment Watch Awards).
- Versatile for various attachments including pallet forks, bale spears, grapples, and augers.
- Standard 2-speed and suspension seat for enhanced operator comfort and productivity.
- Widest cab in the market with a roll-up door for superior visibility and comfort.

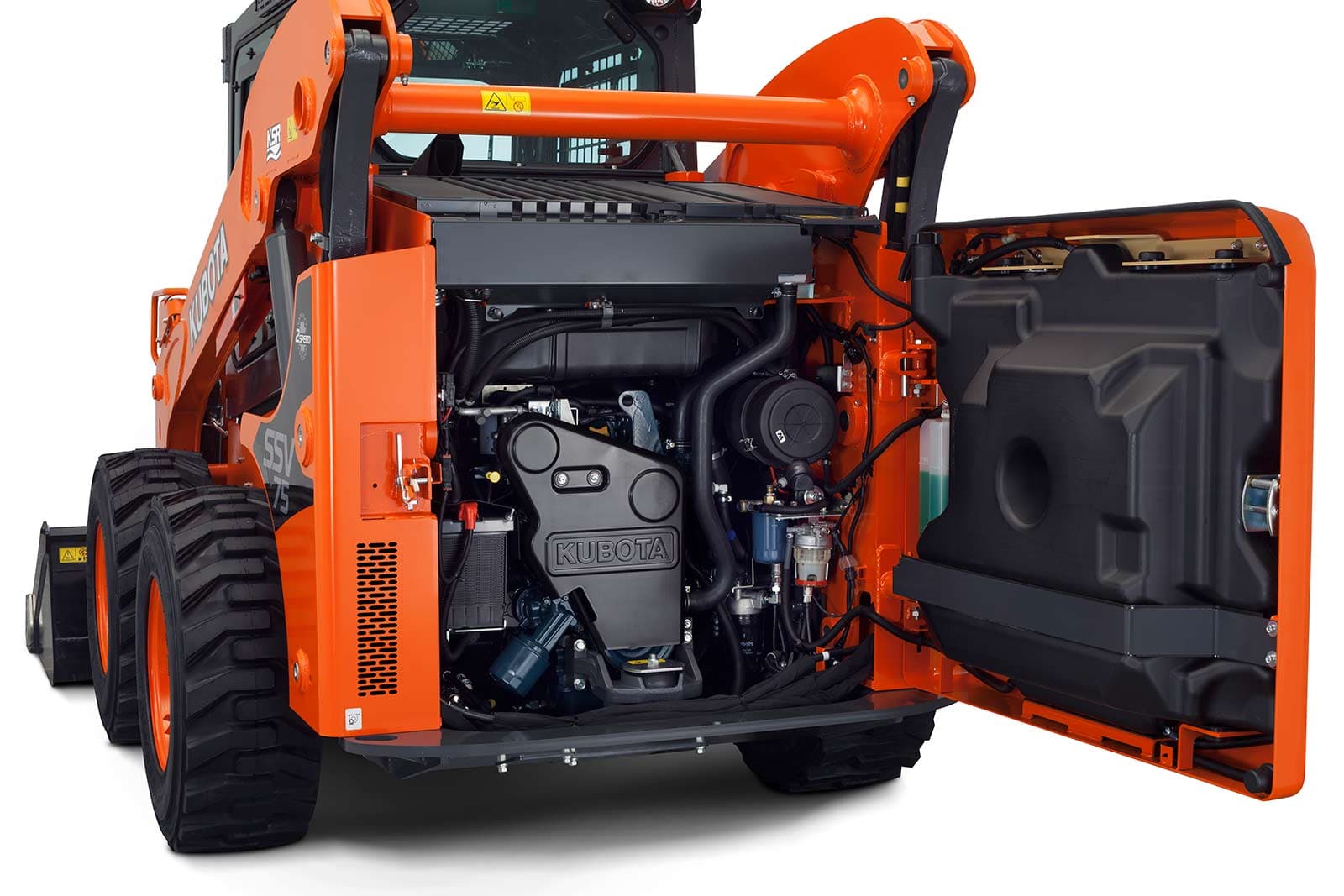

- Easy maintenance with a fuel tank mounted inside the heavy-duty rear door.
- Reliable Kubota engine, a loyalty hallmark in the industry.
- Available with low-effort hydraulic pilot controls for maximum feel and precision.
- Rugged loader arm design with long reach and high bucket hinge pin height.
Features
Explore SSV75 Features
Specifications
SSV75 Specs

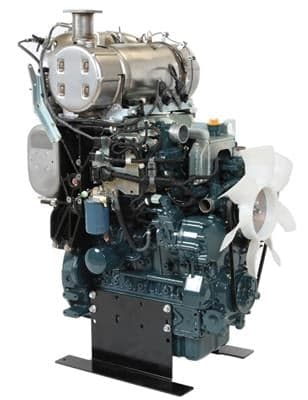

Powerful Kubota Engine
- 71.6 HP gross horsepower for demanding tasks.
- Turbocharged V3307-CR-TE4 engine with Tier 4 emission certification.
- Proven reliability from the largest manufacturer of under-100 HP engines.
Robust Loader Performance
- 5,380 lb tipping load for heavy lifting.
- 5,884 lbf bucket breakout force for efficient digging.
- Rugged loader arm design with vertical lift path, long reach, and high hinge pin height.
Efficient Travel Speeds
- Standard 2-speed travel with a high speed of 11.8 mph (19.0 kph).
- Low speed of 7.4 mph (11.9 kph) for precise maneuvering.
- 8,494 lbs (3853 kg) traction force for excellent grip.
Specifications
Engine
Engine ModelV3307-CR-TE4
Emission CertificationTier 4
Horsepower (gross)71.6 HP
Displacement203.3 cu. in.
Cylinders4
Bore Stroke3.8 in. (94 mm) × 4.8 in. (120 mm)
AspirationTurbocharged
Performance
Tipping Load5380 lbs (2440 kg)
Bucket Breakout Force5884 lbf (2669 kgf)
Lift Arm Breakout Force4850 lbf (2200 kgf)
Lift Arm PathVertical
Traveling Speed: High11.8 mph (19.0 kph)
Traveling Speed: Low7.4 mph (11.9 kph)
Traction Force8494 lbs (3853 kg)
Hydraulics
Loader Hydraulic Flow20.9 GPM (79.0 LPM)
Loader Hydraulic Pressure3271 psi (230 kgf/cm2)
Auxiliary Hydraulics Flow Rate20.9 GPM (79.0 LPM) / 30.4 GPM (115.0 LPM)
Hydraulic Tank4.2 gal (16.0 l)
Dimensions & Capacities
Standard Tire Size12-16.5-10PR
Chain SizeASA# 100
Ground Clearance8.1 in. (207 mm)
Fuel Tank26.9 gal (102.0 l)
Operating Weight8245 lbs (3740 kg) / 8466 lbs (3840 kg)
Overall Height81.3 in (2065 mm)
Overall WidthWidth over Wheels: 71.8 in (1823 mm), Width with Standard Bucket: 75 in (1905 mm)
Overall LengthWithout Bucket: 115.0 in (2920 mm), With Bucket: 144.1 in (3660 mm)
Reach at Maximum Height36.9 in (936 mm)
Height to Hinge Pin128.3 in (3258 mm)
Cab & Comfort
Built for the Operator

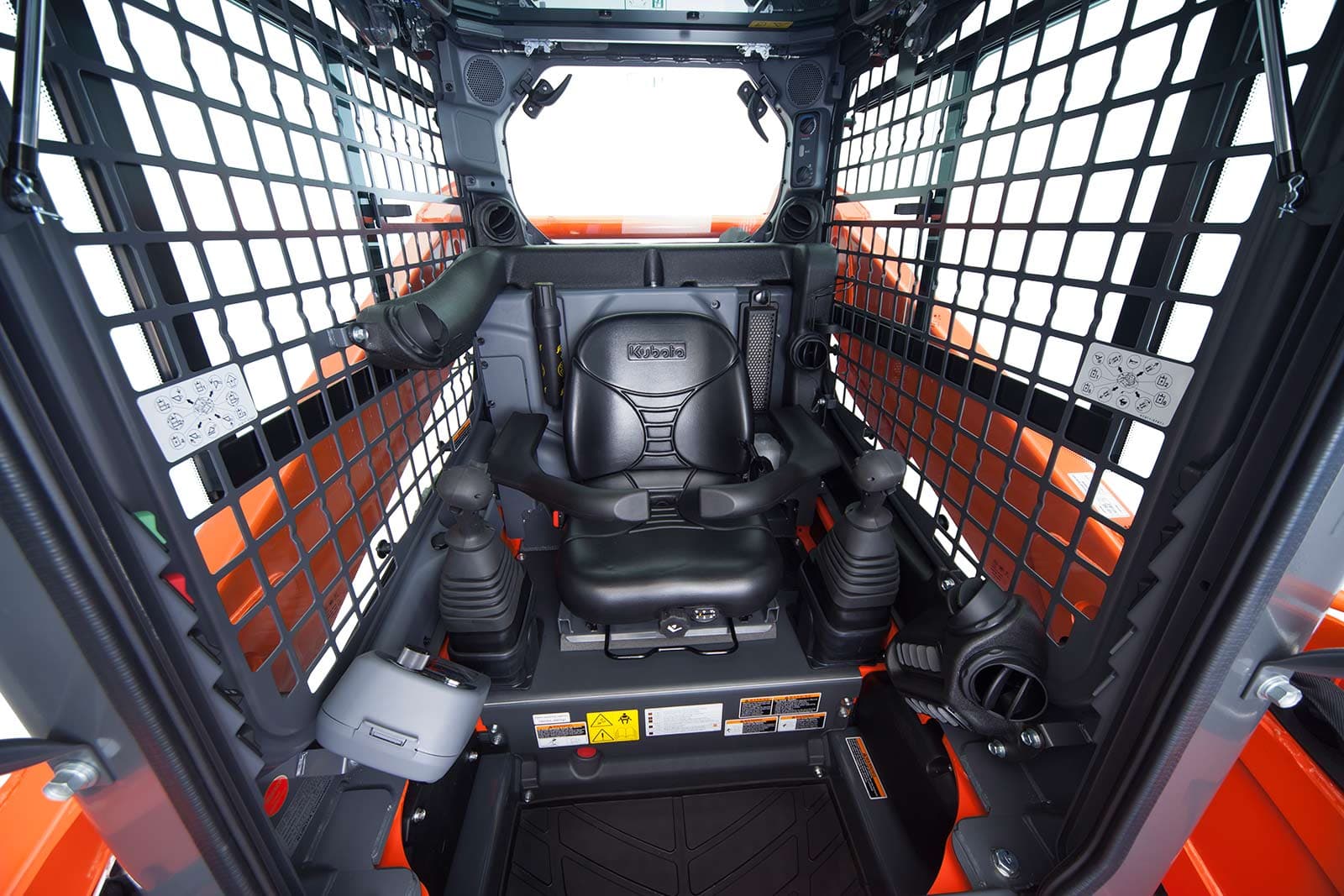

Operator Comfort & Visibility
- Standard suspension seat for reduced fatigue.
- Widest cab in the market with a 36” side-screen to side-screen width.

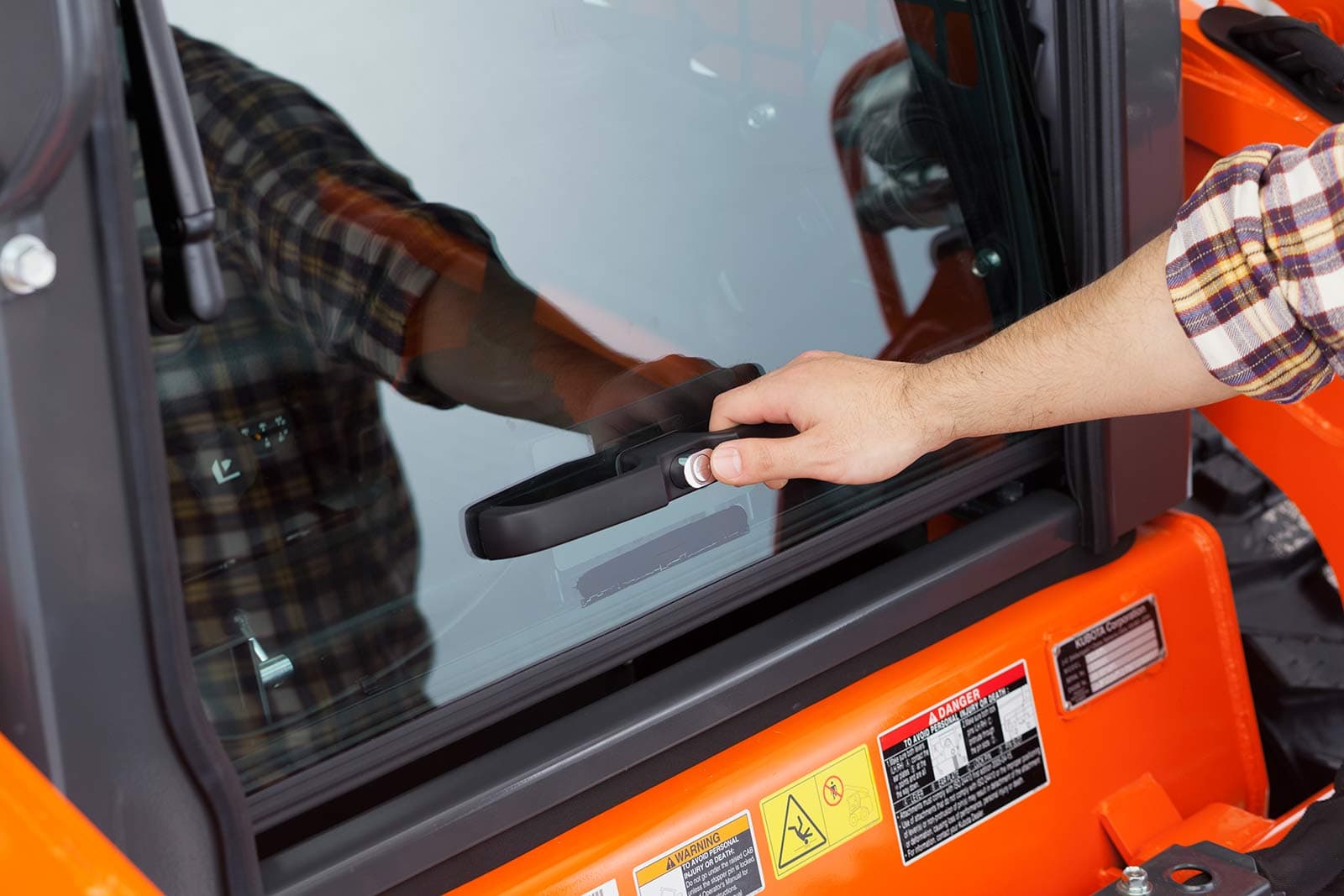

- Roll-up door and rear view mirror for maximum rear visibility.
Precise Control
- Available low-effort hydraulic pilot controls for maximum feel and precision.
- Ergonomically designed grips with all necessary buttons and switches within reach.
- No adjustments or settings necessary for hydraulic controls.
