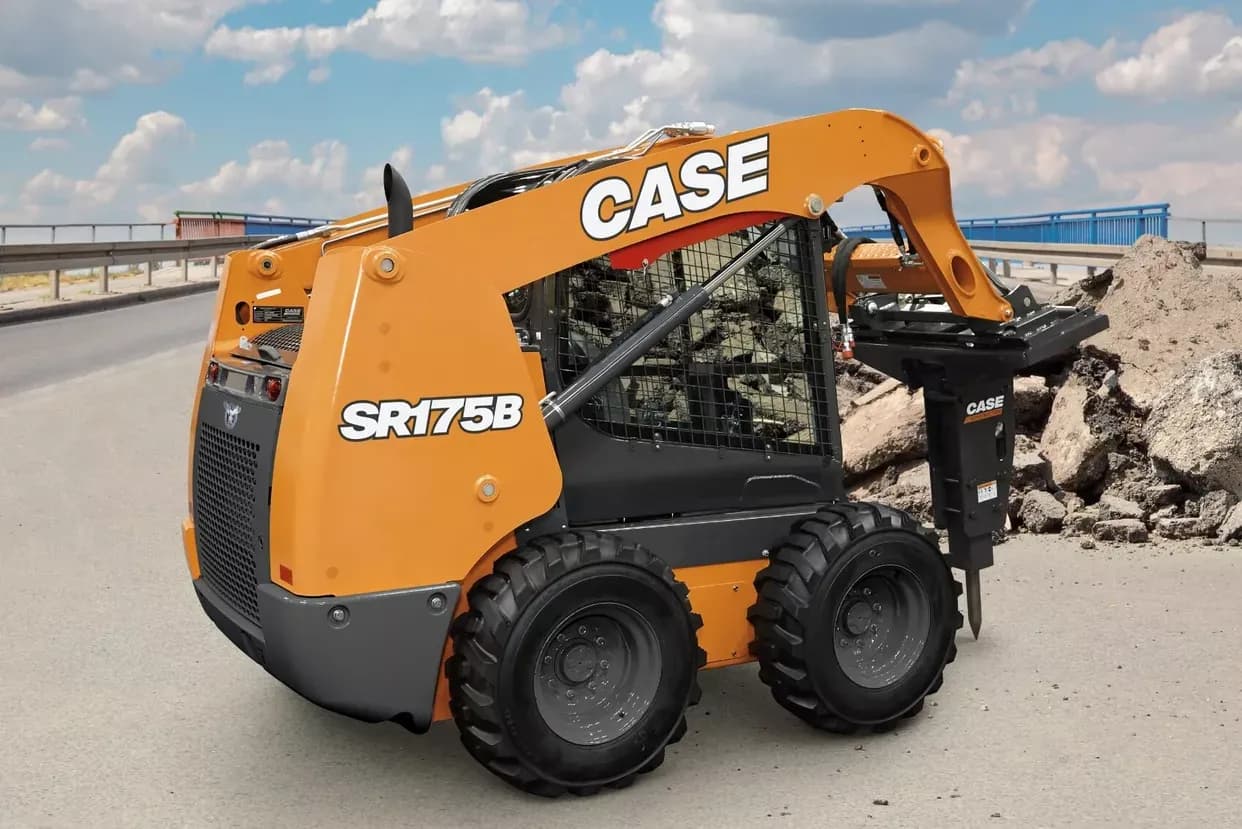

SR175B on a jobsite

SR175B

Compact footprint, big productivity.

The CASE SR175B skid steer sports a compact footprint but packs a ton of productivity. This radial-lift machine features a rated operating capacity of 1,750 lbs and 67 hp, making it ideal for medium-duty jobs.

67 hpHorsepower1,750 lbOperating Capacity20.6 gpmAuxiliary Flow
Request a Quote

Horsepower

67 hp

Operating Capacity

1,750 lb

Radial Lift

Geometry

Electro-Hydraulic

Controls

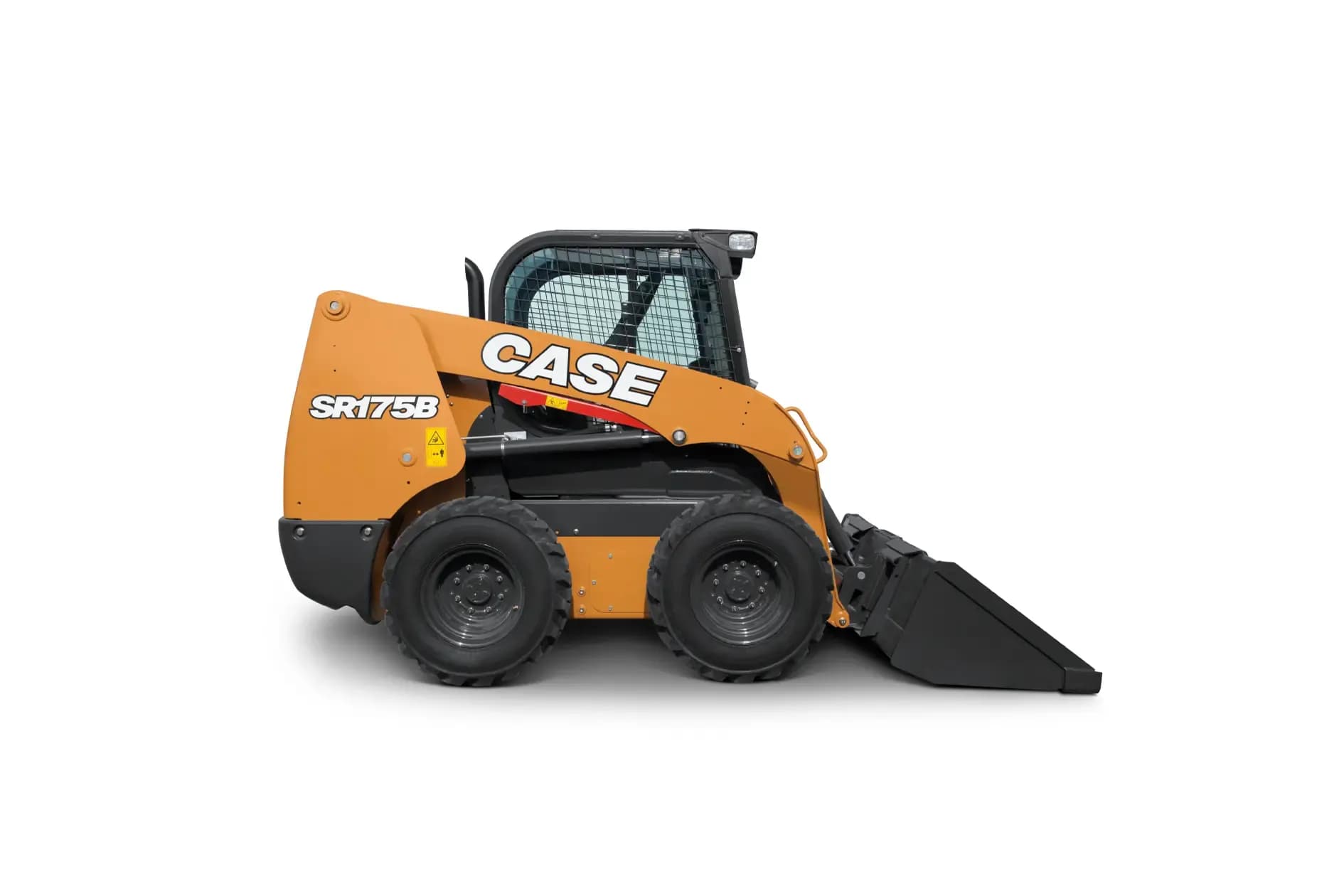

SR175B product image
Overview

Take a Closer Look at the SR175B

Take a quick tour and get a good look at the features and technology that make the SR175B the kind of all-around, highly productive, easy-to-operate workhorse that keeps you running efficiently and making money from the minute the operator climbs into its comfortable operator station.

  • Compact footprint for maneuverability in tight spaces.
  • High productivity with a 1,750 lb rated operating capacity.
  • Comfortable and intuitive operator environment with electro-hydraulic controls.
  • Enhanced visibility with large windows and an integrated rear camera.
  • Reliable performance for medium-duty jobs with 67 hp.
Features

Explore SR175B Features

Specifications

SR175B Specs

Powerful Performance

  • 67 hp engine for reliable power.
  • 1,750 lb rated operating capacity for medium-duty tasks.
  • Radial lift geometry for excellent reach and dump height.

Versatile Hydraulics

  • Standard auxiliary hydraulics at 20.6 gpm.
  • Optional high-flow hydraulics at 30.7 gpm for demanding attachments.
  • Optional hydraulic one-way self-leveling and Auto Ride Control.

Specifications

Engine

Horsepower67 hp | 50.0 kW

Operating Specifications

Rated Operating Capacity - 50% of Tipping Load1,750 lb | 790 kg

Hydraulics

Auxiliary Hydraulics (Standard)@ 3,050 psi (210 bar) – 20.6 gpm (78.0 L/min)
High-Flow Auxiliary Hydraulics (Optional)@ 3,050 psi (210 bar) – 30.7 gpm (116.2 L/min)

Standard Equipment

Operator EnvironmentROPS / FOPS Level 1 canopy w/ side screens, Rear window w/ emergency escape, Rearview mirror
LoaderManual attachment coupler, Radial lift geometry
Other FeaturesLED lights – 2 front, 2 side, 2 rear flood, Block heater
TelematicsmyCASEConstruction – includes hardware and a 7-yr data subscription, SiteConnect Module providing remote diagnostics capability

Optional Equipment

Operator EnvironmentAM / FM Bluetooth radio with 2 speakers, 8 in. Color LCD Display, Deluxe cloth, air suspension seat, with heater and lumbar support, Ignition Timeout, Machine Settings User Access Levels, Operator Security Codes
LoaderHydraulic attachment coupler
DrivetrainCreep Speed Mode (on EH machines only)
Service PartsAdd-on counterweights, Single Point Lift Hook, Aspirator
Cab & Comfort

Built for the Operator

Operator Comfort & Control

  • Spacious cab with ROPS / FOPS Level 1 canopy.
  • Electro-hydraulic controls with four ride control activation speeds.
  • Optional deluxe cloth, air suspension seat with heater and lumbar support.
  • 8-inch Color LCD Display for machine vitals and settings.

Enhanced Visibility

  • Large windows for an expansive view of the jobsite.
  • Integrated rear camera for improved rearward visibility.
  • LED lights – 2 front, 2 side, 2 rear flood for low-light conditions.
Gallery

See the SR175B in Action

SR175B photo 1
