K008-5 on a jobsite

K008-5

Power through jobs with efficiency and versatility.

The Kubota K008-5 ultra-compact excavator delivers robust power and dominant hydraulic performance for efficient and versatile job completion. With two-speed travel and exceptional digging depth, it combines features with Kubota's renowned durability.

10.3 HPHorsepower2315 lbsOperating Weight2205 lbsBucket Breakout Force2.5 mphMax Travel Speed

Horsepower

10.3 HP

Operating Weight

2315 lbs

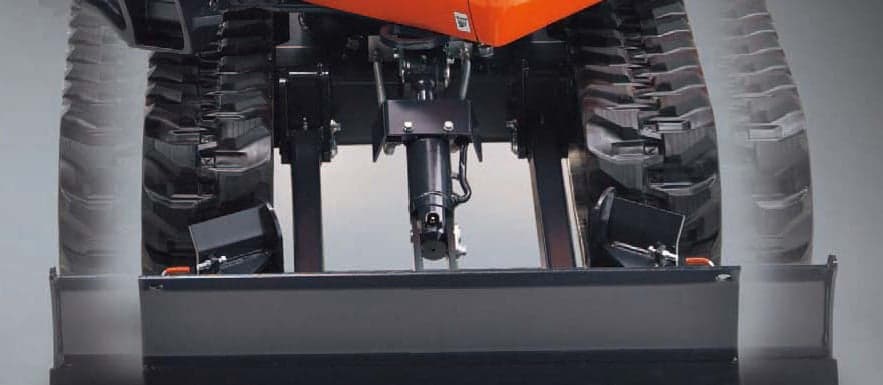

Variable Width Undercarriage

Pass through narrow spaces

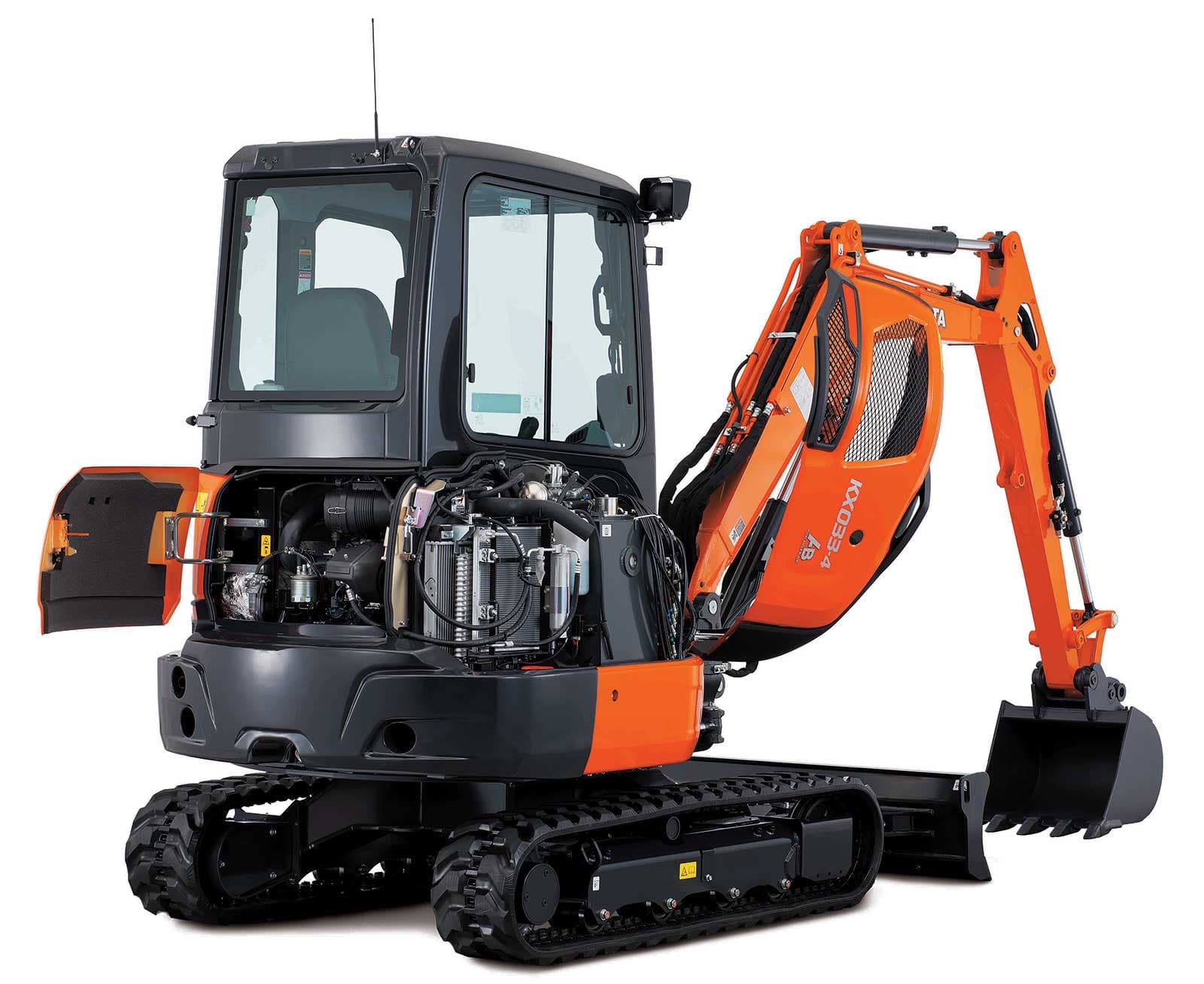

Serviceability

Easy access to components

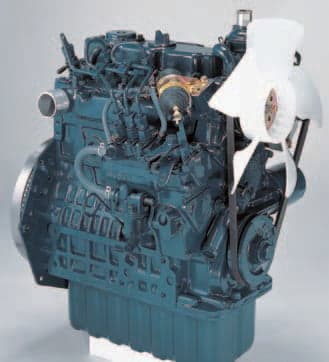

Tier 4 Engine

Clean running, low noise

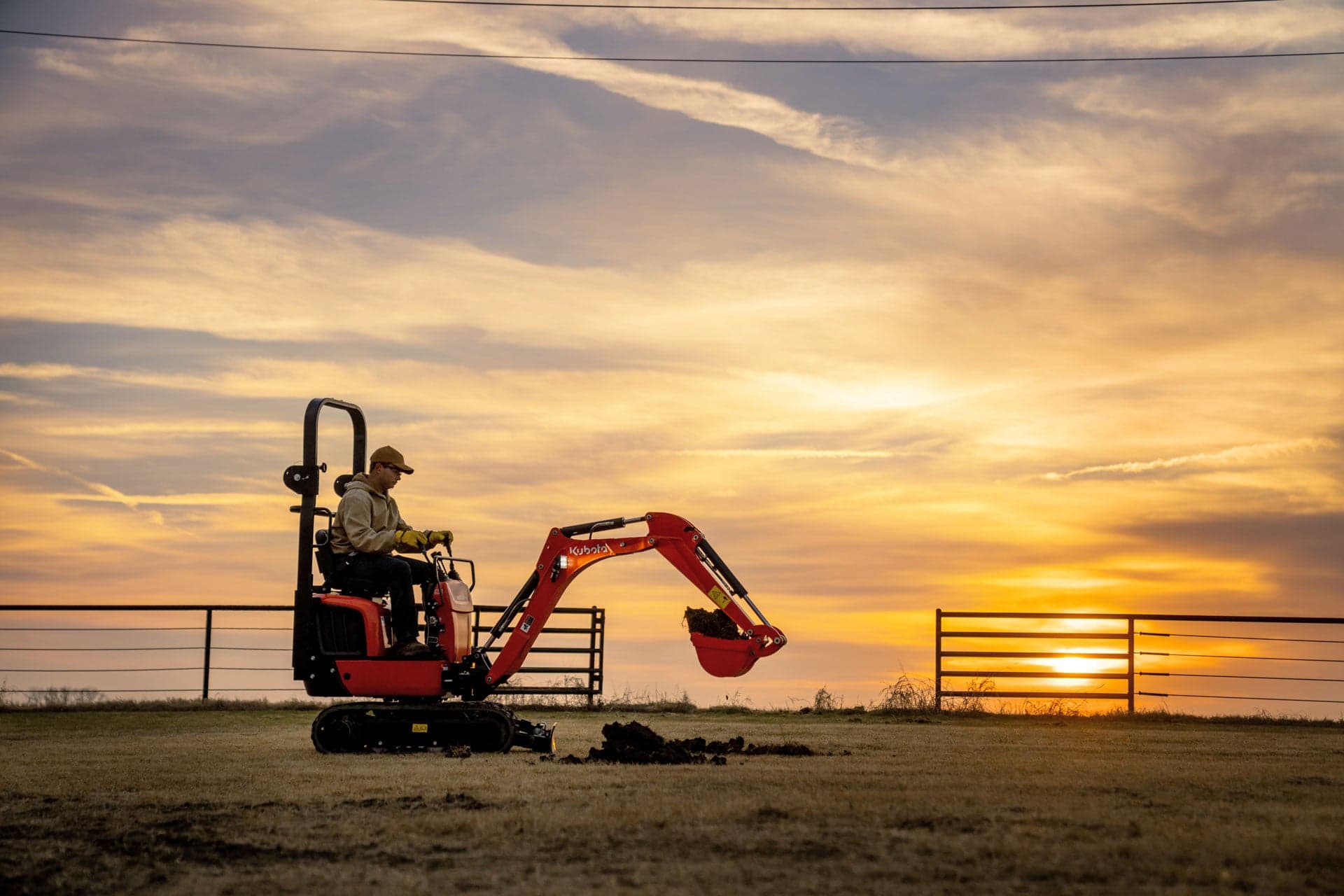

K008-5 product image
Overview

Let's get to work.

The Kubota K008-5 ultra-compact excavator lets you power through jobs with efficiency and versatility. You’ll enjoy a robust 10.3 horsepower rating, dominant hydraulic performance, two-speed travel and exceptional digging depth and height. You get all these features, plus Kubota’s renowned durability. Let’s get to work. Kubota is the world’s #1 selling compact excavator for 20 years.*

  • Robust 10.3 horsepower rating for powerful performance.
  • Dominant hydraulic performance for efficient operation.
  • Two-speed travel for enhanced maneuverability.
  • Exceptional digging depth and height for versatile applications.
  • Kubota's renowned durability ensures long-lasting reliability.
Features

Explore K008-5 Features

Specifications

K008-5 Specs

Dominant Performance

  • Robust 10.3 horsepower engine.
  • Exceptional digging depth and height.
  • High bucket and arm breakout forces.

Enhanced Maneuverability

  • Variable width undercarriage for tight spaces.
  • Two-speed travel for efficient movement.

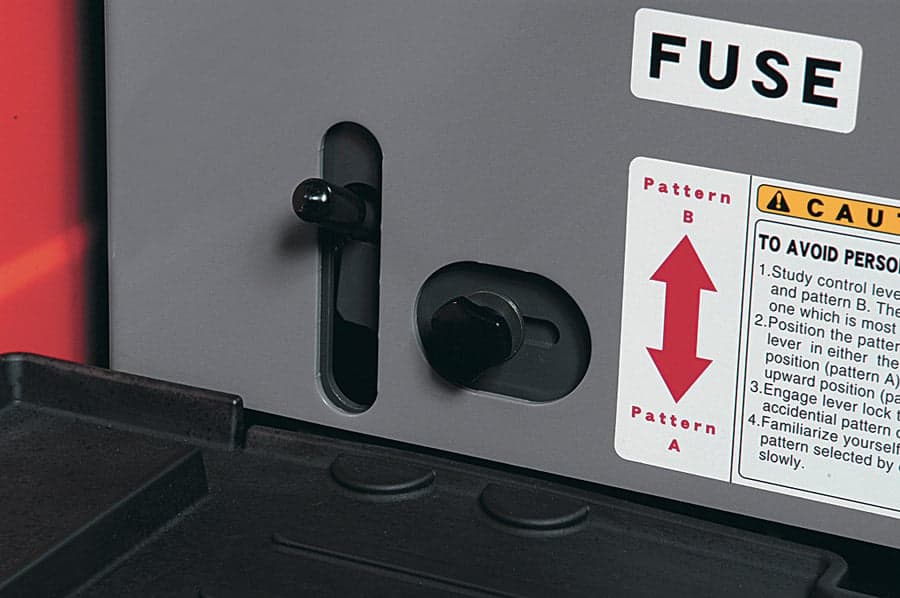

  • Changeable control patterns (ISO/SAE).

Specifications

Engine

ModelKubota D722-E4
Horsepower (gross)10.3 HP
Displacement43.8 cu. in.

Dimensions

Overall Length9ft 0in (2750 mm)
Overall Height7ft 4in (2230 mm)
Overall Width2ft 10in (860 mm) / 2ft 7in (800 mm)
Min. Ground Clearance5.9in (150 mm)
Crawler Length4ft 0in (1230 mm)

Hydraulics

Pump Capacity2.8 GPM (10.5 LPM) x 2
Auxiliary Hydraulics Flow Rate5.5 GPM (21.0 LPM)

Performance

Bucket Breakout Force2205 lbs (1000 kgf)
Arm Breakout Force1012 lbs (458.9 kgf)
Traveling Speed: High2.5 mph (4.0 kph)
Traveling Speed: Low1.2 mph (2.0 kph)
Ground Contact Pressure4.1 psi (0.29 kgf/cm2)

Blade

Blade Width2ft 4in / 2ft 10in (700 / 860 mm)
Blade Height7.9in (200 mm)

Capacities

Hydraulic Oil Reservoir / System3.60 / 4.8 gal (13.5 / 18.0 l)
Fuel Reservoir3.2 gal (12.0 l)

Operating

Operating Weight2315 lbs (1050 kg)
Gallery

See the K008-5 in Action

K008-5 photo 1
K008-5 photo 2
K008-5 photo 3
K008-5 photo 4
K008-5 photo 5
K008-5 photo 6
Get Started

Request a Quote

Tell us what you're looking for and a local Sonsray representative will reach out to you promptly with pricing and availability.

  • No obligation — just honest answers from equipment experts.
  • Fast response from your nearest Sonsray location.
  • Factory pricing, financing options, and trade-in evaluation available.
  • We carry new, used, and demo equipment across all brands.

By submitting this form you agree to our privacy policy. We will never share your information.

Live Inventory

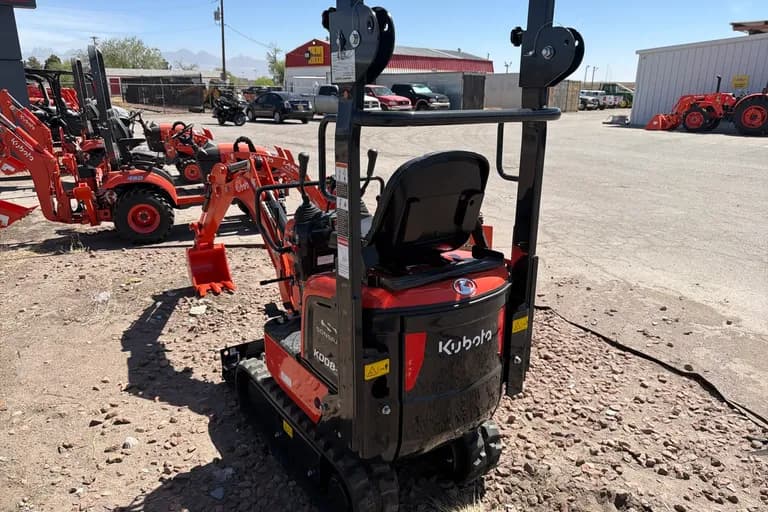

K008-5 in Stock
