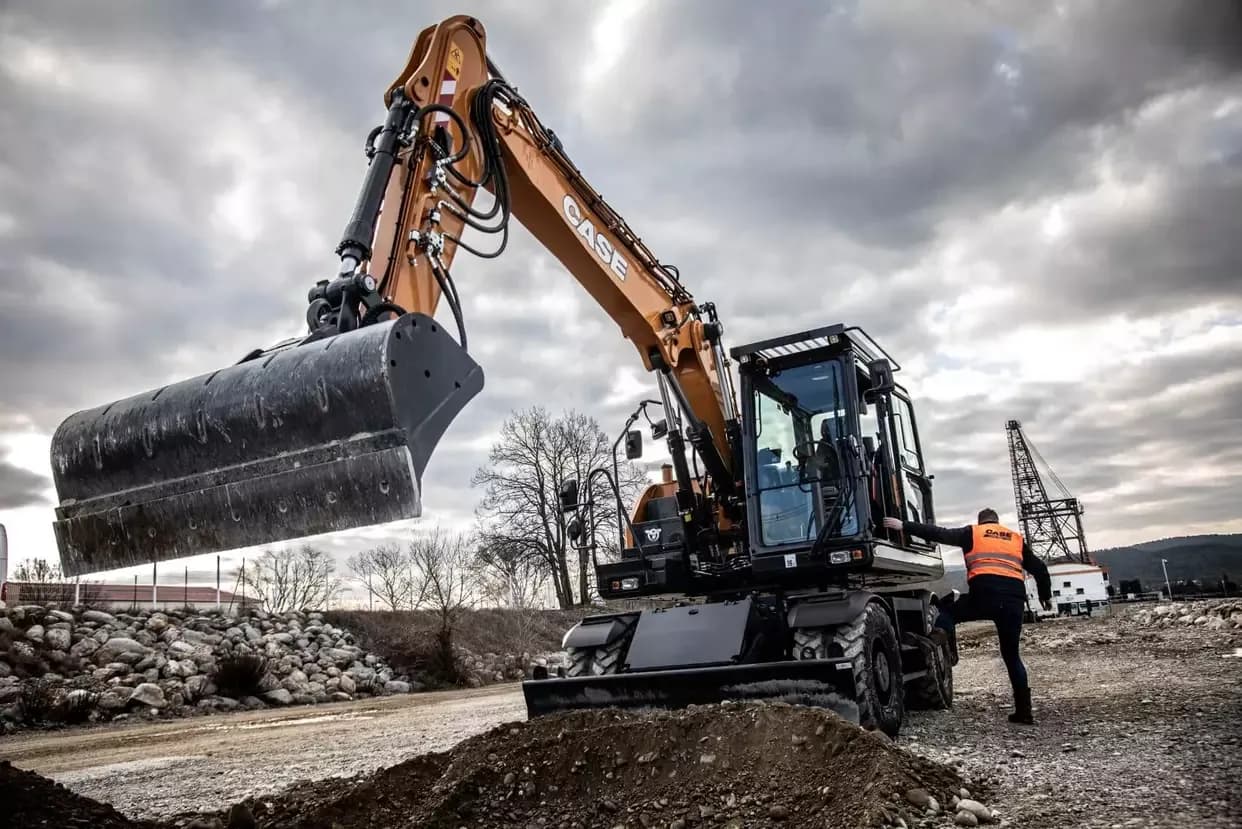

WX210E on a jobsite

WX210E

24 tons of fast-moving, high-tech, job-crushing power at your command.

The CASE WX210E wheeled excavator delivers 24 tons of high-tech, high-performance power designed for demanding jobsites, offering speed, comfort, and precision.

170 hpHorsepower53,649 lbOperating Weight575 ft·lbMax Torque24 mphTravel Speed
Request a Quote

Horsepower

170 hp

Operating Weight

53,649 lb

Top Road Speed

25 mph

Cab Display

8-inch touchscreen

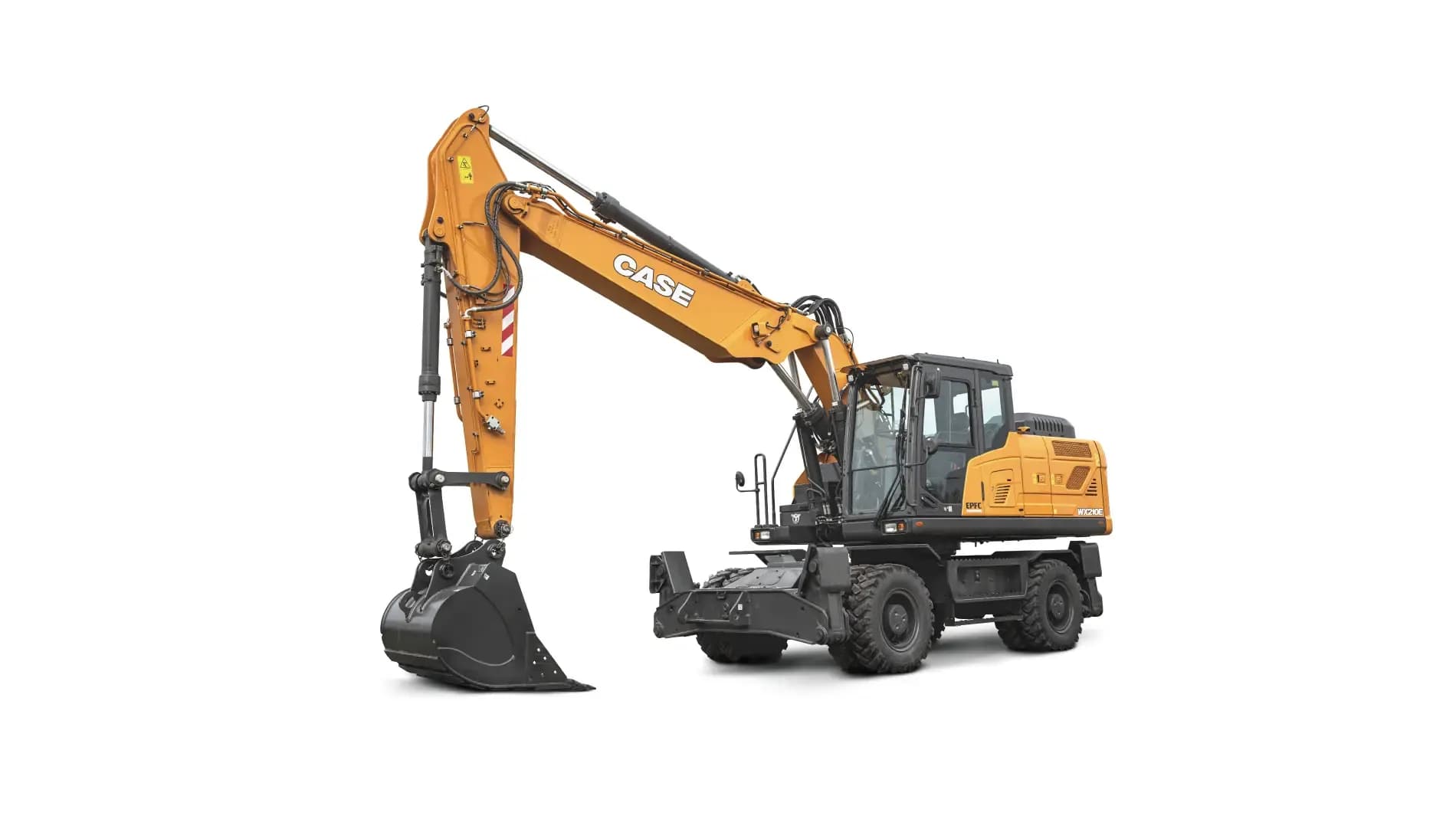

WX210E product image
Overview

Some Machines Are Tough To Ignore

The CASE WX210E wheeled excavator has been rolling its way into the hearts and jobsites of operators since its recent introduction, thanks to its innovative design and job-crushing capabilities, not to mention its comfort and safety. Because of that, it's rolled all the way onto the Contractor's Top 50 New Products list in Equipment Today.

  • Massive breakout forces and lifting/craning capacities for demanding jobs.
  • Precise control with advanced, industry-best hydraulics.
  • Efficient operation with three pre-set power modes plus exclusive Lift mode.
  • Spacious and comfortable cab for an optimal operator experience.
  • High road speed for fast movement between jobsites.
Features

Explore WX210E Features

Specifications

WX210E Specs

Powerful Performance

  • 170 horsepower engine delivers massive breakout forces.
  • High lifting and craning capacities for demanding tasks.
  • Advanced, industry-best hydraulics for precise control.

Efficient Operation

  • Three pre-set power modes for optimized efficiency.
  • Exclusive Lift mode for specialized operations.
  • Load sensing hydraulic system with advanced flow sharing.

Specifications

Engine

EngineCummins B6.7 Charge air-cooled 6-cylinder in line 6.7-liter DOC+DPF+SCR aftertreatment EGR free engine
Rated Flywheel Horsepower (ISO 9249)170 hp (127 kW) @ 2200 RPM
Rated Flywheel Horsepower (ISO 14396)173 hp (129 kW) @ 2200 RPM
Maximum Torque (ISO 14396)575 ft·lb (780 Nm) @ 1500 RPM
Emissions CertificationTier 4 Final / Stage V certified
Fuel CompatibilityUltra-low sulfur diesel and B7 biodiesel fuel certified

Undercarriage

Rear Blade and Front StabilizersRemovable parallel mounting bolt-on designed
AccessCab access steps
Tie DownsLashing points

Upper Carriage

LightingLED working lights package

Hydraulic System

System TypeLoad sensing hydraulic system (LUDV) with advanced flow sharing hydraulics
Work Modes3 selectable work modes (heavy duty, standard and economy)
Custom Work Mode1 - selectable user customized work mode - engine speed, idle speed, machine speed and pump flow
Attachment CircuitHigh flow multi-function with pressure setting circuit for one-way and two-way flow attachments
Hydraulic Settings StorageIn monitor hydraulic settings storage and management for 10 one-way and 10 two-way attachments
Quick CouplerQuick coupler hydraulic circuit
Ride ControlAccumulator on boom cylinders for cushioning ride control system

Driveline

Transmission2-speed hydrostatic powershift transmission
High Travel Speed24 mph (38.4 km/h) (Automatic travel speed shifting)

Operator Environment

CabEnclosed pressurized cab with air conditioning, heat and defrost with full climate control and lockable door
Safety CertificationROPS/FOPS certified

Front End Equipment (Optional)

Digging Arm7 ft 10 in (2.4 m)
Monoboom(ride control not available)
Cab & Comfort

Built for the Operator

Operator Comfort & Safety

  • Spacious, enclosed, and pressurized cab.
  • Air conditioning, heat, and defrost with full climate control.
  • ROPS/FOPS certified for enhanced safety.
  • Optional rear and right-side cameras for improved visibility.
Gallery

See the WX210E in Action

WX210E photo 1
