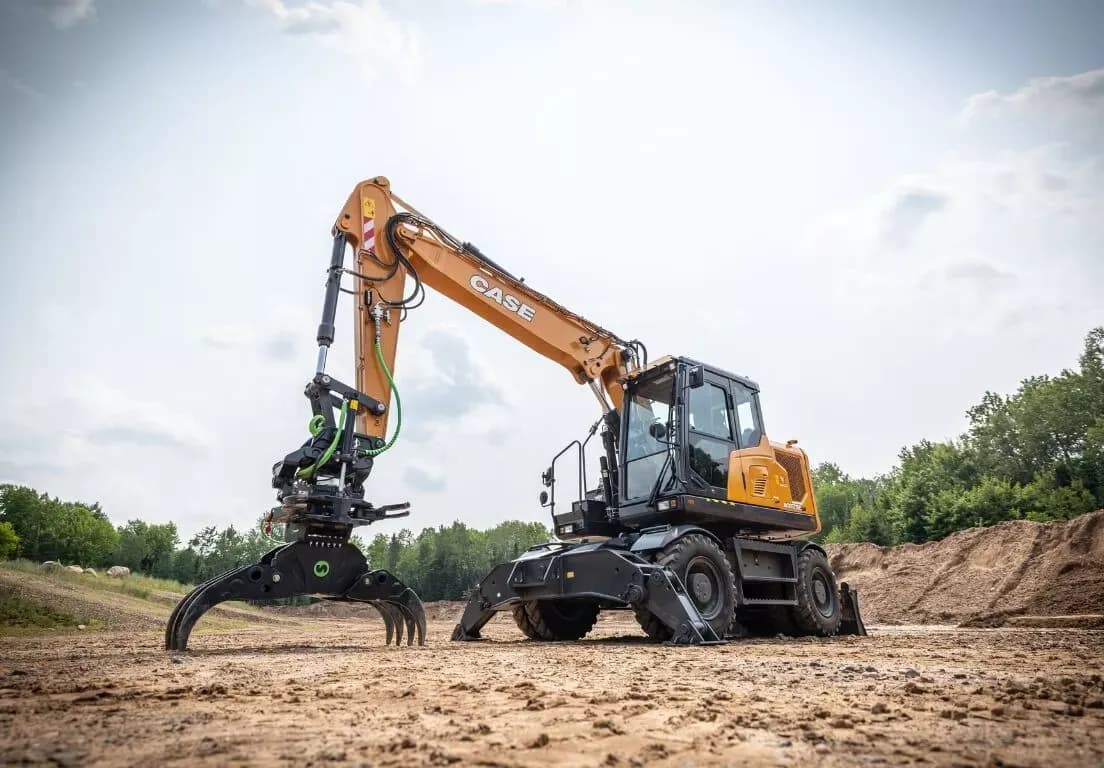

WX175E SR on a jobsite

WX175E SR

Roll through jobs faster than ever with the new CASE WX175E SR wheeled excavator.

The new CASE WX175E SR wheeled excavator combines powerful performance with smart design for unmatched versatility in urban and roadside applications, featuring a short-radius tailswing for maneuverability in tight spaces.

170 hpHorsepower44,088 lbOperating Weight22 mphMax Travel Speed
Request a Quote

Horsepower

170 hp

Operating Weight

44,088 lb

Tailswing

Short-radius

Travel Speed

Up to 22 mph

WX175E SR product image
Overview

Powerful Performance, Smart Design

The CASE WX175E SR Wheeled Excavator combines powerful performance with smart design for unmatched versatility in urban and roadside applications. Featuring a 170 hp engine and a short-radius tail swing, it delivers exceptional digging force and maneuverability in tight spaces.

  • Short-radius tailswing for excellent maneuverability in tight spaces.
  • Industry-leading hydraulics for precision and control.
  • Three preset work modes and one customizable mode for efficiency.
  • Unmatched cab comfort for increased productivity.
Features

Explore WX175E SR Features

Specifications

WX175E SR Specs

Powerful Engine

  • 170 hp (127 kW) engine for robust performance.
  • Cummins B4.5 engine with DOC+DPF+SCR aftertreatment.
  • Tier 4 Final / Stage V certified for environmental compliance.

Advanced Hydraulics

  • Load sensing hydraulic system with advanced flow sharing.
  • Three preset work modes and one customizable mode for efficiency.
  • High flow multi-function circuit for versatile attachments.

Maneuverability

  • Short-radius tailswing ideal for tight urban and roadside applications.
  • Removable parallel mounting bolt-on designed rear blade and front stabilizers.
  • 2-speed hydrostatic powershift transmission for agile movement.

Specifications

Engine

Engine ModelCummins B4.5
Cylinders4
Displacement4.5 L
Rated Flywheel Horsepower (ISO 14396)173 hp (129 kW) @ 2200 RPM
Maximum Torque (ISO 14396)575 ft·lb (780 Nm) @ 1500 RPM
Emissions CertificationTier 4 Final / Stage V
AftertreatmentDOC+DPF+SCR

Operating

Operating Weight44,088 lb (20 040 kg)

Driveline

Transmission2-speed hydrostatic powershift
High Travel Speed22 mph (35 km/h)

Hydraulic System

TypeLoad sensing (LUDV) with advanced flow sharing
Work Modes3 selectable (heavy duty, standard, economy) + 1 customizable
Attachment Settings Storage10 one-way, 10 two-way
Boom CushioningAccumulator on boom cylinders

Operator Environment

Cab TypeEnclosed pressurized with A/C, heat, defrost
CertificationROPS/FOPS

Front End Equipment (Optional)

Digging Arm Length8 ft (2.45 m), 8 ft 6 in (2.6 m)
Cab & Comfort

Built for the Operator

Operator Environment

  • Enclosed pressurized cab with full climate control (A/C, heat, defrost).
  • ROPS/FOPS certified for operator safety.
  • Optional rear and right-side cameras for enhanced visibility.
Gallery

See the WX175E SR in Action

WX175E SR photo 1

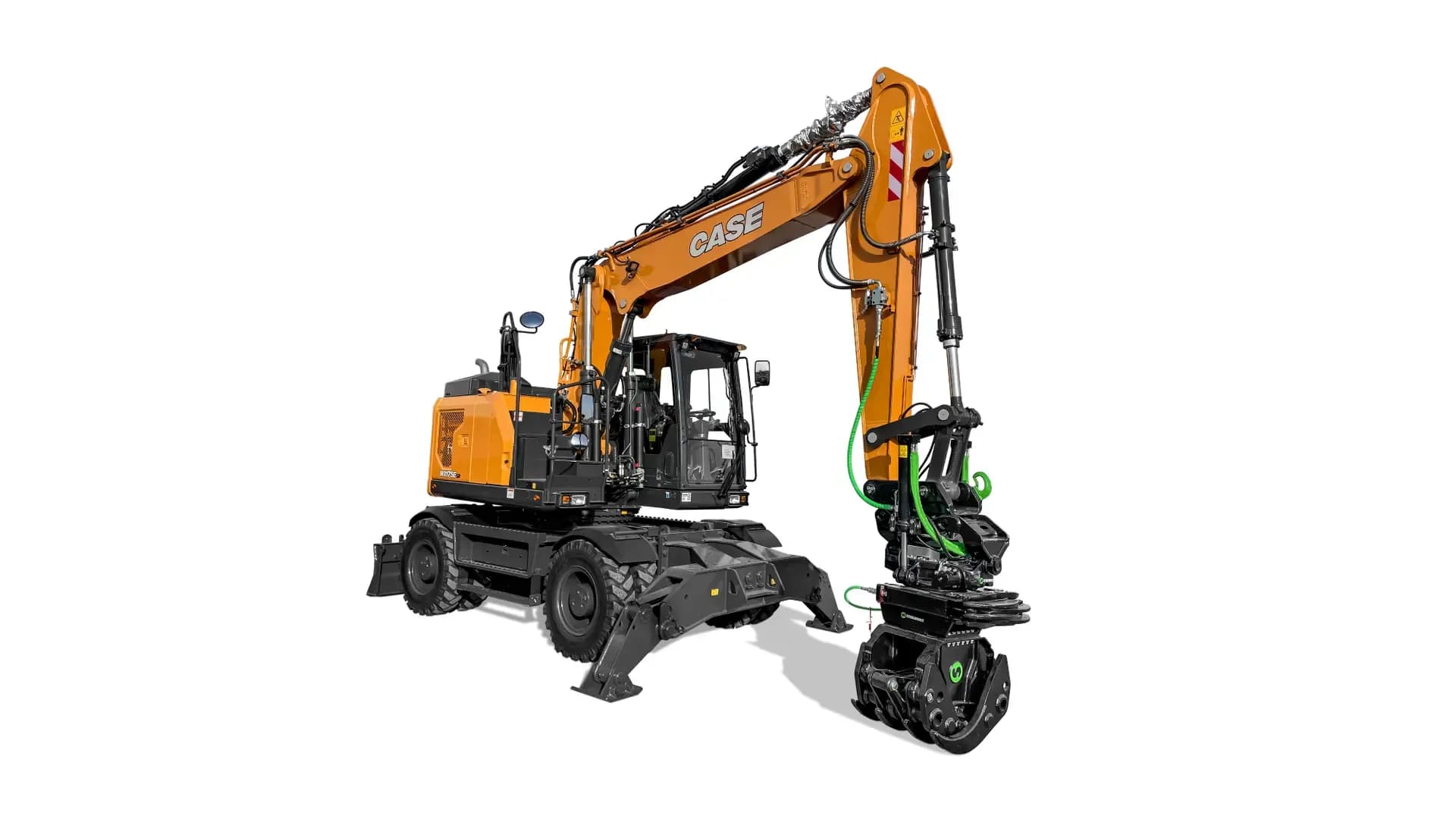

WX175E SR photo 2
