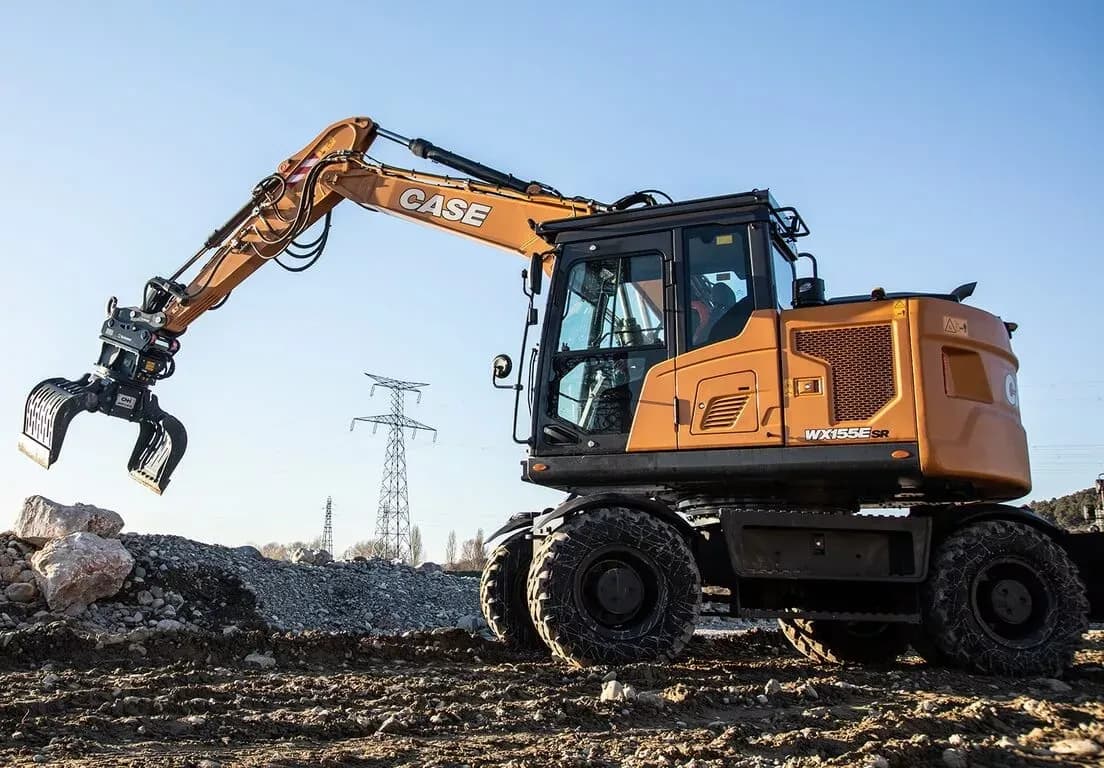

WX155E SR on a jobsite

WX155E SR

Powerful performance and agility in tight spaces.

The CASE WX155E SR Wheeled Excavator delivers powerful performance and agility in tight spaces, making it ideal for urban and roadside work.

170 hpHorsepower40,458 lbOperating Weight22 mphMax Travel Speed
Request a Quote

Horsepower

170 hp

Operating Weight

40,458 lb

Travel Speed

22 mph

Short-Radius Design

Agility in tight spaces

Advanced Hydraulics

Smooth & precise control

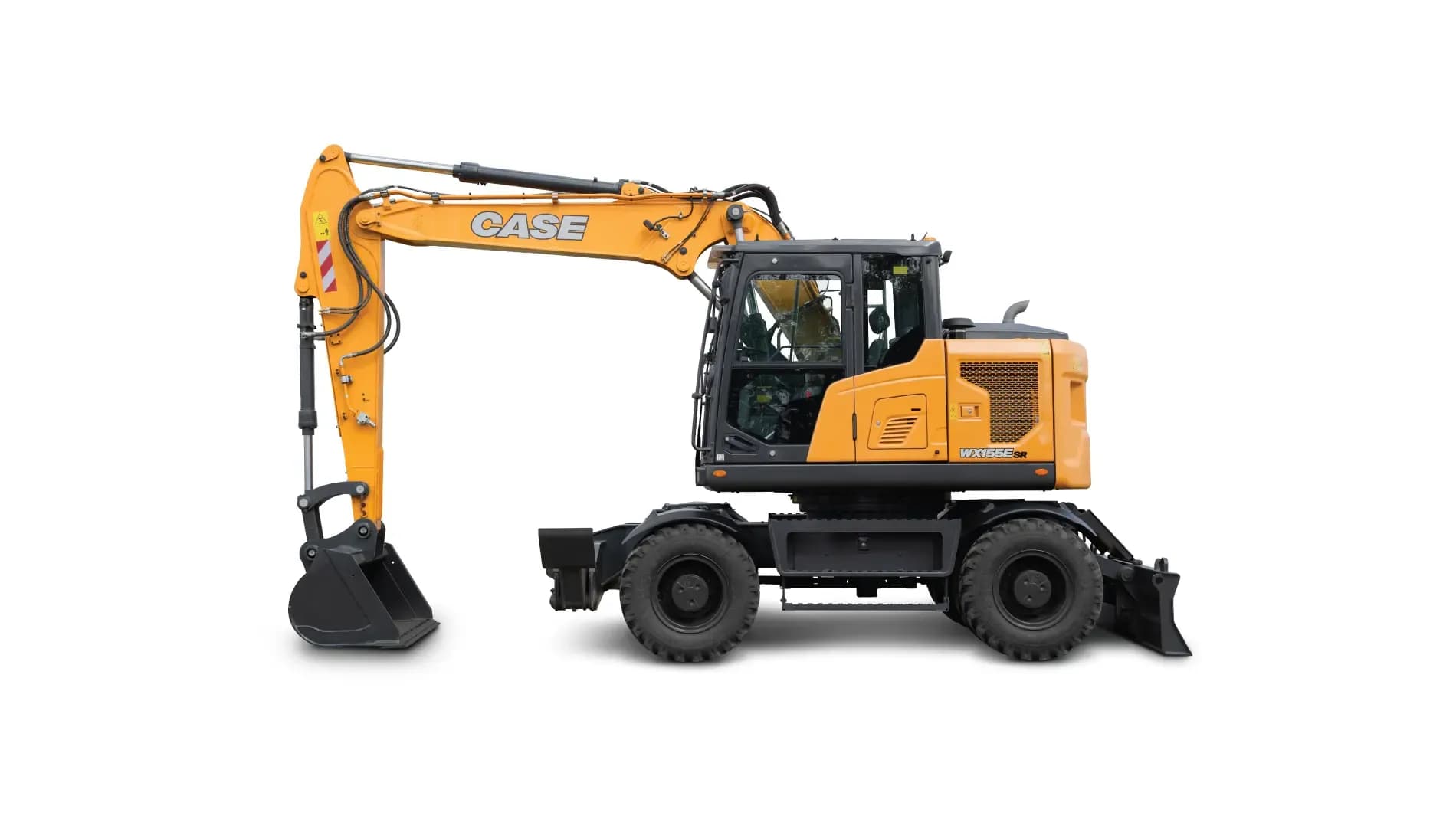

WX155E SR product image
Overview

CASE WX155E SR Wheeled Excavator

The CASE WX155E SR Wheeled Excavator delivers powerful performance and agility in tight spaces. With a 170 hp engine, advanced hydraulics, and a short-radius design, it’s built for urban and roadside work. The spacious cab features an 8-inch touchscreen and customizable power modes, making it a versatile and efficient choice for demanding jobsites.

  • Powerful performance in a short-radius design
  • Maximum operator comfort and control
  • Advanced hydraulics for smooth and precise operation
  • High mobility for urban and roadside applications
Features

Explore WX155E SR Features

Specifications

WX155E SR Specs

Powerful Engine

  • 170 hp Cummins B4.5 engine
  • Tier 4 Final / Stage V certified
  • 575 ft·lb (780 Nm) maximum torque

Advanced Hydraulics

  • Load sensing system with advanced flow sharing
  • 3 selectable work modes plus 1 customizable mode
  • High flow multi-function circuit for versatile attachments

High Mobility

  • 2-speed hydrostatic powershift transmission
  • Automatic travel speed shifting
  • Top speed of 22 mph (35 km/h)

Specifications

Engine

Engine ModelCummins B4.5
Cylinders4
Displacement4.5 L
Rated Flywheel Horsepower (ISO 9249)170 hp (127 kW) @ 2200 RPM
Rated Flywheel Horsepower (ISO 14396)173 hp (129 kW) @ 2200 RPM
Maximum Torque (ISO 14396)575 ft·lb (780 Nm) @ 1500 RPM
Emissions CertificationTier 4 Final / Stage V
Fuel CompatibilityUltra-low sulfur diesel and B7 biodiesel

Operating Specifications

Operating Weight40,458 lb (18 390 kg)

Driveline

Transmission2-speed hydrostatic powershift
High Travel Speed22 mph (35 km/h)

Hydraulic System

System TypeLoad sensing (LUDV) with advanced flow sharing
Work ModesHeavy duty, standard, economy, 1 user customized
Attachment Settings Storage10 one-way, 10 two-way
Boom CushioningAccumulator on boom cylinders

Operator Environment

Cab TypeEnclosed pressurized with A/C, heat, defrost
Safety CertificationROPS/FOPS certified
Display8-in. touchscreen

Front End Equipment (Optional)

Digging Arm Length6 ft 7 in (2 m), 8 ft 6 in (2.6 m)
MonoboomAvailable (ride control not available)
Cab & Comfort

Built for the Operator

Operator Comfort & Safety

  • Enclosed pressurized cab with full climate control
  • ROPS/FOPS certified for enhanced safety
  • Ergonomic design for reduced operator fatigue

Intuitive Control

  • 8-inch touchscreen display for machine data
  • Customizable work modes for optimized performance
  • In-monitor hydraulic settings storage and management
