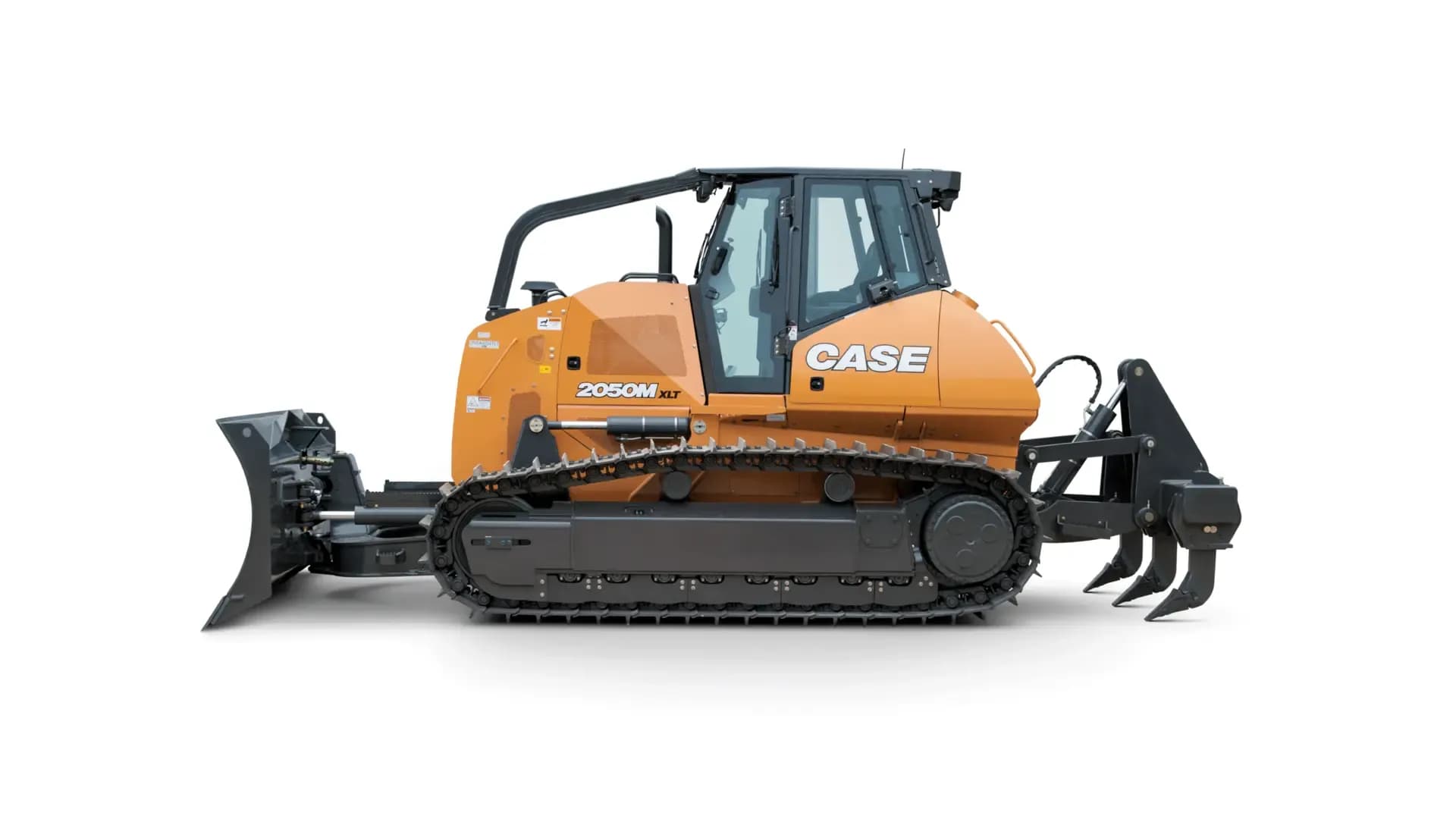

2050M
This one puts the bull in bulldozer.
The CASE 2050M Dozer is a powerful machine with 232 horsepower, designed for large cuts and mass earthmoving, offering precise control and a comfortable operator environment.
232 hpHorsepower45,651 lbOperating Weight
Horsepower
232 hp
Operating Weight
45,651 lb
ProCare Warranty
3-yr/3000-hr
Planned Maintenance
3-yr/2000-hr
Overview
Take a Closer Look
Take a quick tour and get a good look at the features and technology that make the 2050M the kind of all-around, highly productive, easy-to-operate workhorse that keeps you running efficiently and making money from the minute the operator climbs into its comfortable operator station.
- Exceptional power for large cuts and mass earthmoving
- Precise and smooth control with optional machine control
- Reduced cab vibration for enhanced operator comfort
- Excellent visibility for improved site awareness
- Protected by CASE ProCare for peace of mind and controlled owning/operating expenses
Features
Explore 2050M Features
Specifications
2050M Specs
Power & Productivity
- 232 horsepower for large cuts and mass earthmoving.
- Customized operation settings to adjust track speed based on load.
Precision & Control
- Optional machine control for precise and smooth operation.
- Single lever electro-hydraulic control for blade lift, angle, and tilt.
Specifications
Engine
Engine ModelF4HFE613J Tier 4 Final Certified
Horsepower232 hp | 173 kW
Operating Weight
Operating Weight45,651 lb | 20 707 kg
Operator Environment
CabFully enclosed ROPS cab
ControlsSingle lever control for speed, steering and direction
SeatCloth air suspension seat w/ back adjustment
VisibilityRearview mirror
Blade
Pitch55° – 60° variable pitch, with integral adjustment tool
ControlSingle lever electro-hydraulic control for blade lift, angle, and tilt
Undercarriage
Track AdjustersHydraulic track adjusters
Track ChainSealed and Lubricated Track Chain (SALT)
Rollers & IdlersPermanently lubricated track and carrier rollers and idlers
Telematics
SystemmyCASEConstruction 4G Telematics – includes hardware and a 7-yr advanced data subscription
Warranty & Maintenance
ProCareFull Machine Protection Factory Warranty (3-yr/3000-hr), Planned Maintenance (3-yr/2000-hr) and myCASEConstruction 4G Telematics
Optional Hydraulics
Ripper Valve (4-spool)4-spool hydraulic valve for field-installed ripper
Ripper Valve (3-spool, no plugs)3-spool hydraulic valve without plugs for field-installed ripper
Ripper Valve (3-spool, with plugs)3-spool hydraulic valve with plugs
Optional Rear Mounted Equipment
Ripper2 position with 3 shanks
HD Ripper6” Tooth
DrawbarDrawbar
Drawbar with StepDrawbar with step
Optional Blades
PAT Blade (142 in, 48 in height)PAT – 142 in (3 607 mm) High Visibility Blade 48 in height
PAT Blade (142 in, 54 in height)PAT – 142 in (3 607 mm) 54 in height
PAT Blade (157.5 in, 54 in height)PAT – 157.5 in (4 000.5 mm) 54 in height
Folding PAT BladeFolding PAT – 160 in (4 064 mm)
HS Straight Blade (WT/LGP)HS Straight (WT/LGP) – 154 in (3 900 mm)
Semi-U BladeSemi-U – 135 in (3 422 mm)
LGP Semi-U BladeLGP Semi-U Blade – 157 in (3 988 mm)
HS Straight Blade (XLT)HS Straight (XLT) – 131 in (3 334 mm)
Optional Other
TrackCASE Ultra Life Track
Optional Precision
CoPilotFactory Fit CoPilot
2D LaserFactory Fit 2D Laser
3D GNSSFactory Fit 3D GNSS
Universal Blade GuidanceCompatible with Leica, Trimble and Topcon
Leica Blade Guidance ReadyLeica Blade Guidance Ready
Trimble Blade Guidance ReadyTrimble Blade Guidance Ready
Topcon Blade Guidance ReadyTopcon Blade Guidance Ready
Cab & Comfort
Built for the Operator
Operator Environment
- Fully enclosed ROPS cab for safety and comfort.
- Cloth air suspension seat with back adjustment.
- Reduced vibration thanks to an enhanced undercarriage.
- Vast and impressive visibility for improved awareness.
Gallery

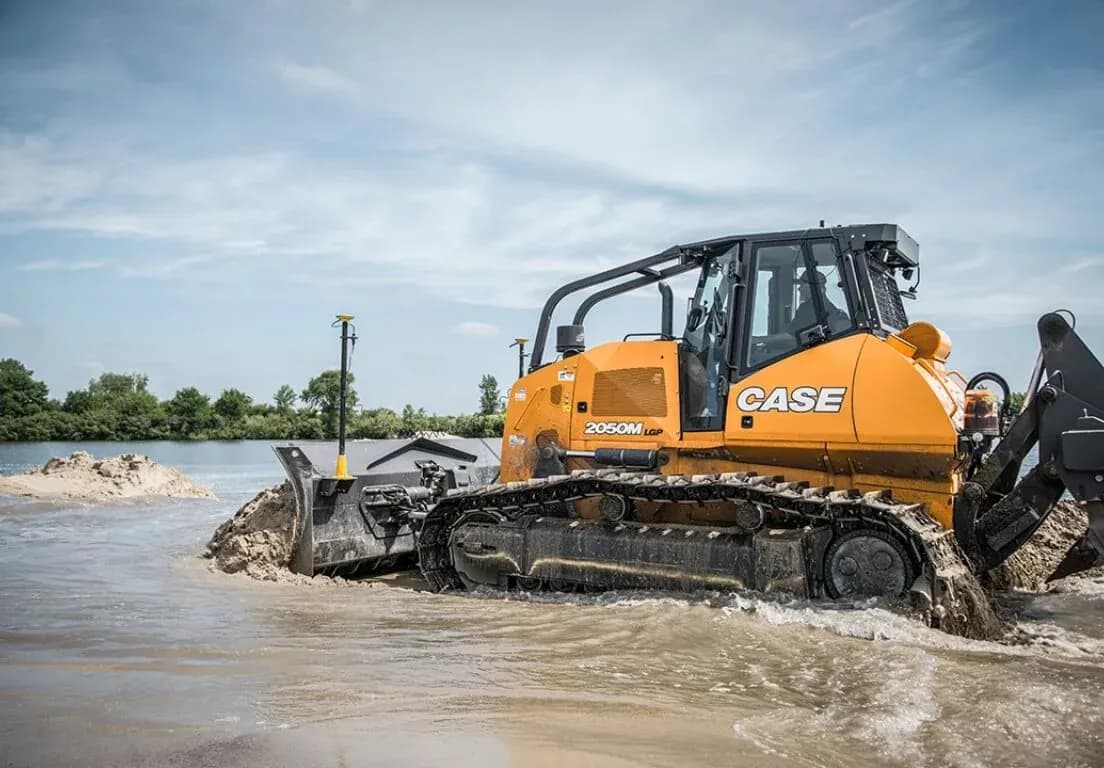

See the 2050M in Action
