321G
Strong performance and speed in a compact footprint.

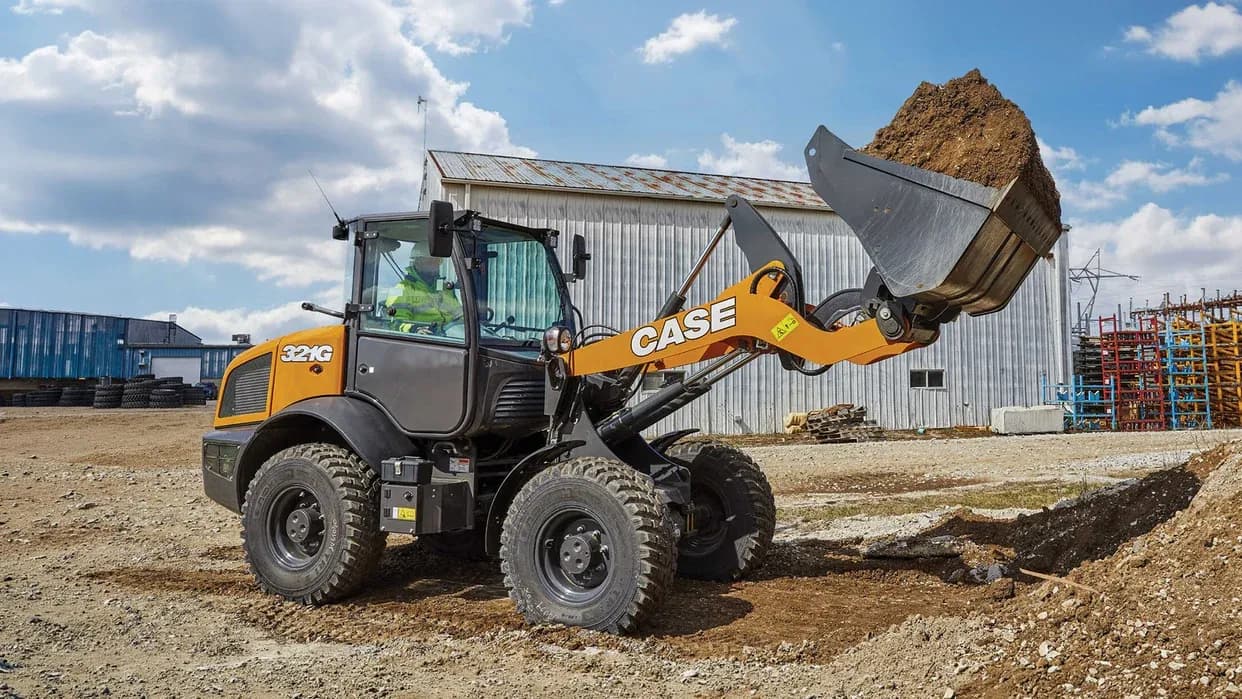

The CASE 321G compact wheel loader offers strong performance and speed in a small footprint, with roading speeds up to 25 mph and a 74-hp engine for tough tasks. It features a comfortable cab with excellent visibility and easy-to-use controls, plus a standard skid-steer style coupler for versatile attachment use.
74 hpHorsepower13,691 lbOperating Weight25 mphMax Speed1.3 - 1.7 cu ydBucket Capacity
Horsepower
74 hp
Operating Weight
13,691 lb
Roading Speed
Up to 25 mph
Bucket Capacity
1.3 to 1.7 cu yd
Maintenance
No DEF or regeneration
Overview
Discover the 321G
Features
Explore 321G Features
Specifications
321G Specs
Specifications
Engine
Engine ModelFPT F5HFL463A
Horsepower74 hp | 55 kW
Operating Weight
Operating Weight13,691 lb | 6 210 kg
Drivetrain
Drive4-wheel drive
AxlesOpen – front and rear axles
TransmissionHydrostatic
ControlsSingle joystick with electronic speed shift control, F/N/R switch and proportional loader control
BrakesHydraulic wet disc brakes (mechanical parking brake)
Hydraulics
Loader Control Valve3-spool
Diagnostic Couplers3 quick couplers
Loader ControlsAdjustable electro hydraulic (EH) with smooth, moderate & aggressive settings
CouplerHydraulic skid steer compatible
High Flow (Optional)Max. 34.3 gpm @ 2500 RPM @ 2,901 psi (Max. 130 L/min @ 2500 RPM @ 20 000 kPa)
Loader System
LinkageZ-Bar
ControlSeat Mounted Single Control for lift and tilt
FloatPositive hold float
Attachment CouplerHydraulic, Skid steer compatible/horizontal pin compatible
Ride ControlAuto Ride Control w/speed settings
Operator Environment
ROPSISO 3471: 2,008 lb (6 800 kg)
CabDeluxe Cab w/ heater and A/C
SeatFull adjustable, cloth suspension seat
ControlsSeat Mounted Single joystick w/ electronic speed shift control, F/N/R switch, proportional loader control and proportional hydraulic auxiliary w/detent switch
DisplayDisplay w/ encoder and integrated backup camera
