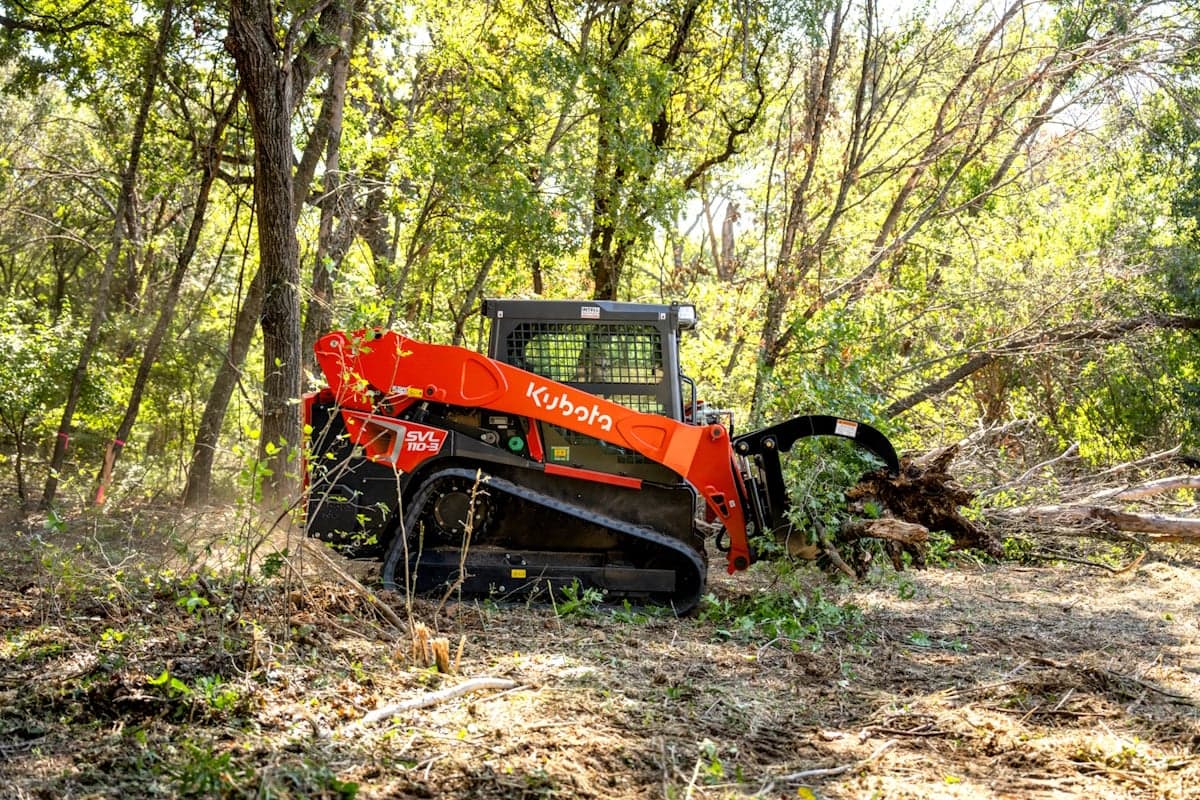

SVL110-3 on a jobsite

SVL110-3

Break new ground with Kubota's newest track loader.

The Kubota SVL110-3 is a powerful and comfortable compact track loader, ready to tackle the toughest tasks with ease. It features a sealed one-piece cab, air ride suspension seat, and advanced controls for optimal productivity.

112.7 HPHorsepower12,322 lbsOperating Weight3,700 lbsRated Operating Capacity7,650 lbfBucket Breakout Force
Request a Quote

Horsepower

112.7 HP

Operating Weight

12,322 lbs

Rated Operating Capacity

3,700 lbs

Height to Hinge Pin

128.5 in

Auxiliary Flow Rate

45.0 GPM

SVL110-3 product image
Overview

Unmatched Power and Comfort

The Kubota SVL110-3 is engineered for demanding jobs, offering a blend of robust performance and operator comfort. Its advanced features and durable design ensure maximum productivity and reliability on any job site.

  • Tackle the toughest tasks with ease
  • Stay comfortable all day long in the sealed one-piece cab
  • Adjust machine controls through the 7” LCD screen and multifunction grips
  • Enhanced productivity with creep mode, auto downshift, and auxiliary performance system
Features

Explore SVL110-3 Features

Specifications

SVL110-3 Specs

Advanced Technology

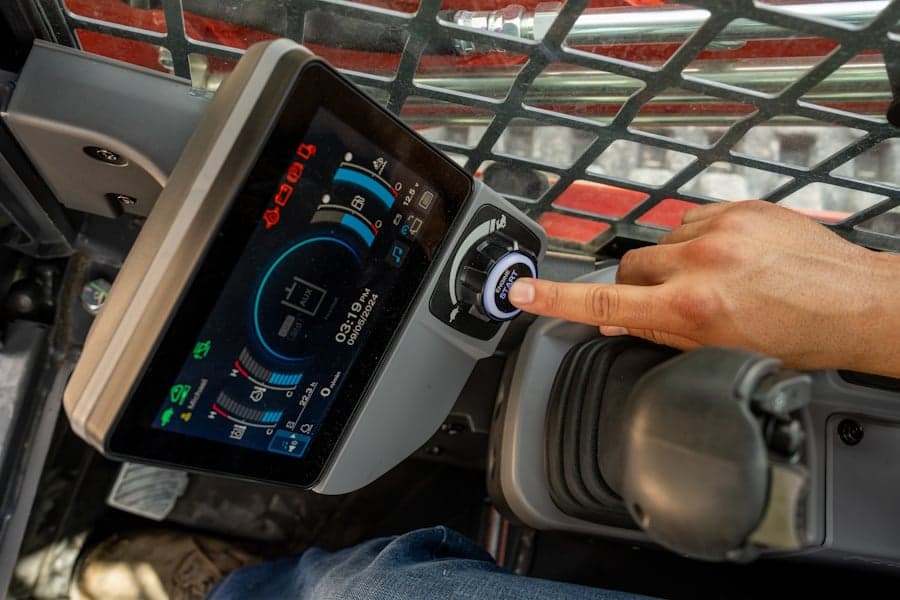

  • 7-inch LCD monitor for vital information
  • Selectable one-way hydraulic self-leveling
  • Kubota WorkSmart Telematics for machine vitals and location
  • Standard Auto Downshift for smooth operation

Robust Loader Arm Design

  • Rugged design with long reach and high bucket hinge pin height
  • Vertical lift geometry for pushing and digging
  • Reinforced in critical areas for durability
  • Designed as a true workhorse for demanding tasks

Specifications

Engine

Horsepower (gross)112.7 HP
Displacement230 cu. in. (3769 cc)

Dimensions

Overall Length123.7 in (3141 mm)
Overall Height83.1 in (2112 mm)
Overall Width77.2 in (1962 mm)
Ground Clearance10.9 in (278 mm)
Height to Hinge Pin128.5 in (3264 mm)

Performance

Operating Weight12322 lbs (5589 kg)
Rated Operating Capacity (ROC)3700 lbs (1678 kg)
Tipping Load10571 lbs (4795 kg)
Bucket Breakout Force7650 lbf (3469 kg)
Lift Arm Breakout Force5288 lbf (2398 kg)
Traction Force13174.7 lbf (5976 kgf)
Traveling Speed: High8.4 mph (13.4 kph)
Traveling Speed: Low5.5 mph (8.8 kph)

Hydraulics

Auxiliary Hydraulic Pressure3553 psi (250 bar)
Auxiliary Hydraulics Flow Rate45.0 GPM (170.4 LPM)

Tracks

Lift Arm PathVertical
Track Width (standard/wide)17.7 in (450 mm) / N/A
Ground Contact Pressure4.8 psi (kPa)
Track Rollers (per side)5
Track Ground Contact Length65.6 in (1667 mm)

Operator Station

Operator StationClosed cab
Cab & Comfort

Built for the Operator

Operator Comfort & Safety

  • Sealed one-piece cab reduces noise and keeps out debris
  • Wider cab entrance (36" side-screen to side-screen width)
  • Air ride suspension high back seat for all-day comfort
  • Low effort hydraulic controls for maximum feel and precision
Gallery

See the SVL110-3 in Action

SVL110-3 photo 1
SVL110-3 photo 2

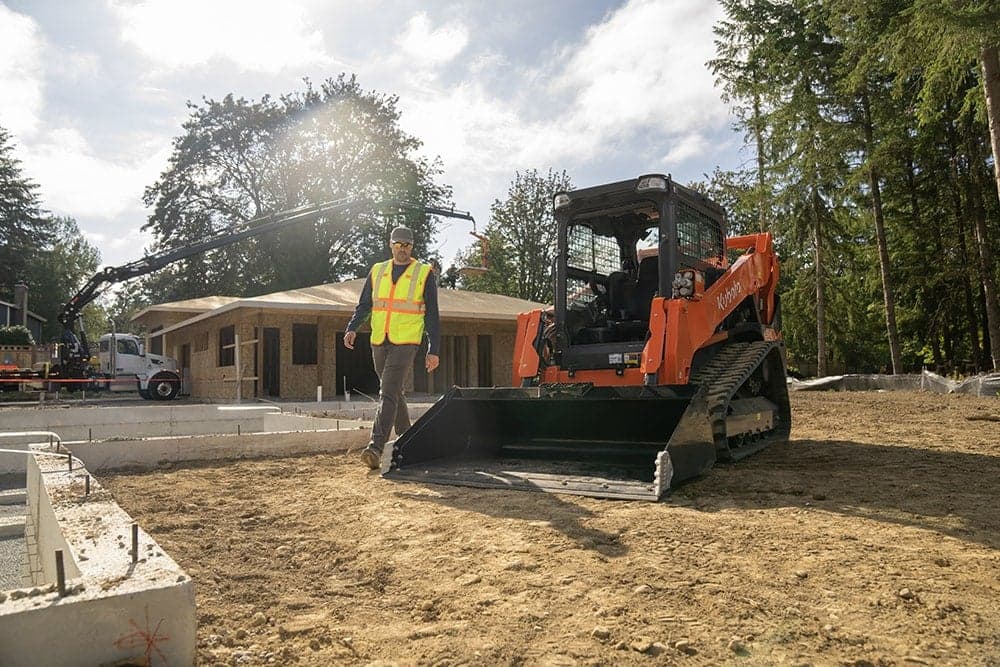

SVL110-3 photo 3

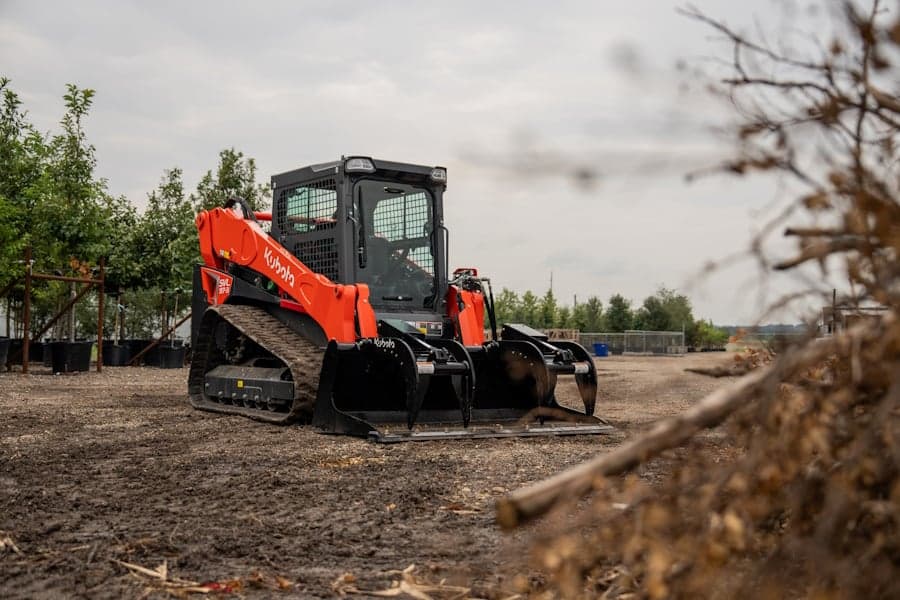

SVL110-3 photo 4

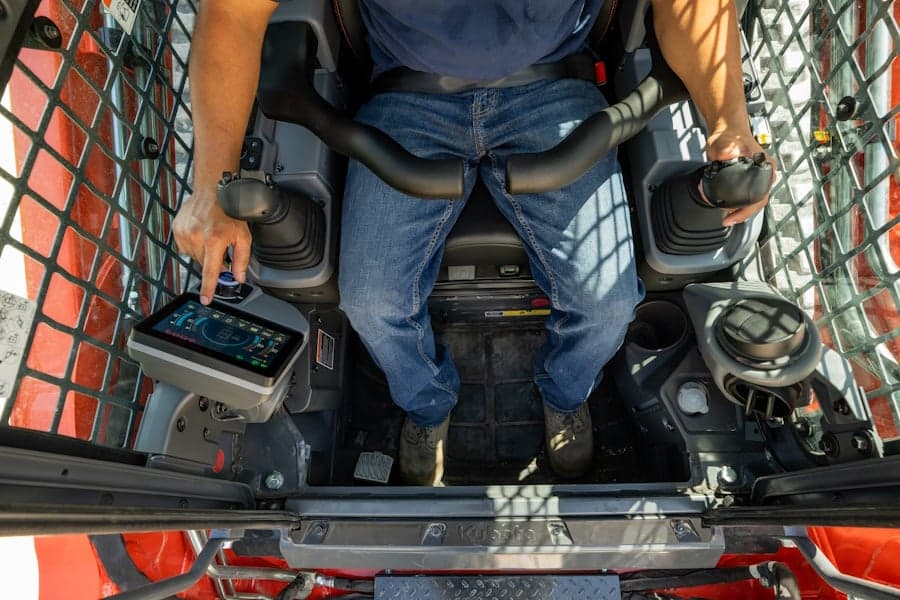

SVL110-3 photo 5
SVL110-3 photo 6
