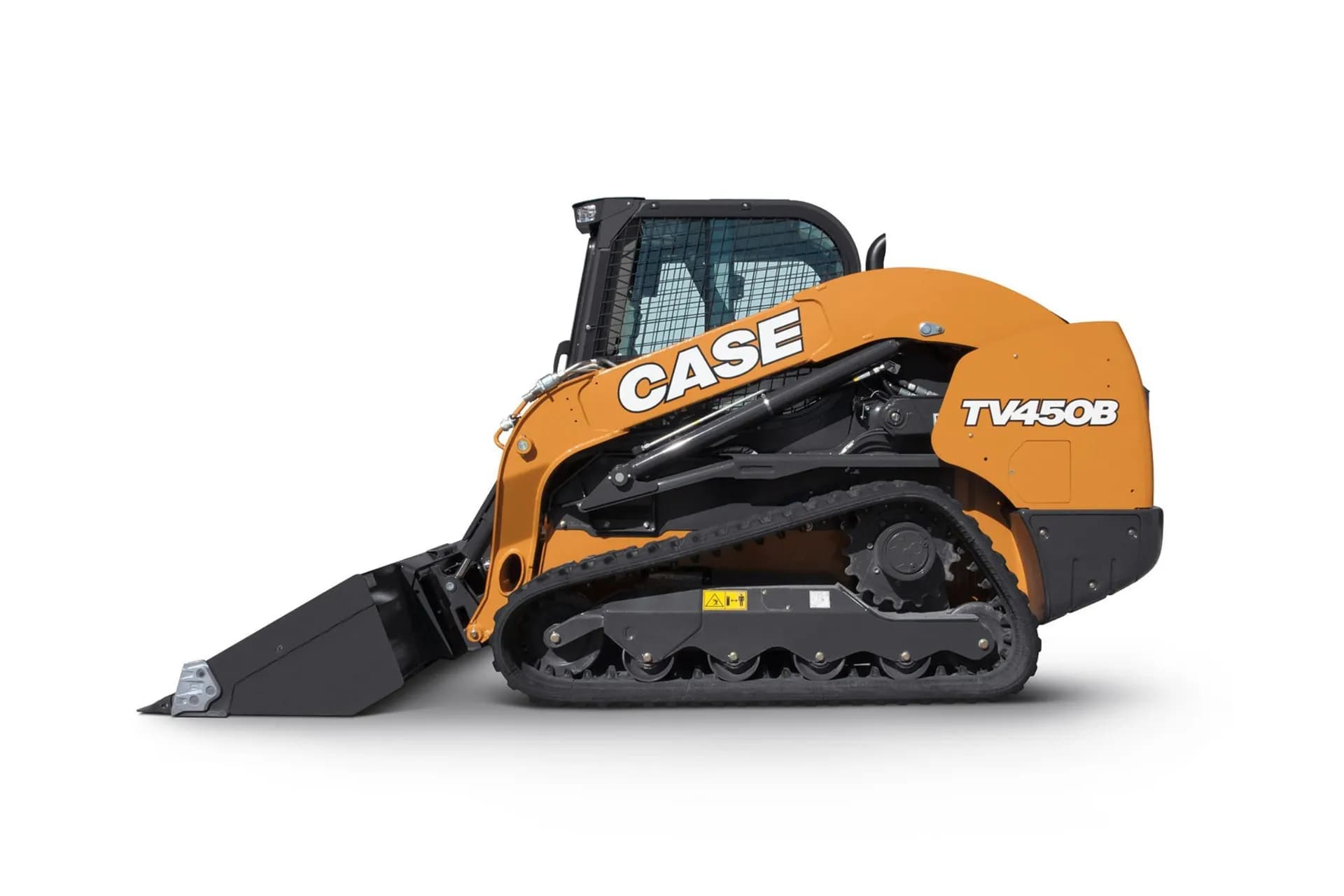

TV450B

Here’s a productivity beast. Lift more and run more powerful attachments.

The CASE TV450B Compact Track Loader is a productivity beast, offering a burly 90 hp engine and a 4,500 lb. rated operating capacity for heavy lifting and powerful attachment use.

90 hpHorsepower4,500 lbOperating Capacity24.2 gpmAuxiliary Flow

Request a Quote View 10 in Inventory

Horsepower

90 hp

Rated Operating Capacity

4,500 lb

Auxiliary Hydraulics

24.2 gpm

Tipping Load

9,000 lbs

Overview

STANDOUT FEATURES

When you’re looking to lift more, explore the unique features of the TV450B.

Specifications

TV450B Specs

Powerful Engine

Burly 90 hp engine for demanding tasks.
High bucket and lift cylinder breakout forces.

High Lifting Capacity

4,500 lb. rated operating capacity at 50% tipping load.
Eager to move material efficiently.

Versatile Hydraulics

Standard auxiliary hydraulics at 24.2 gpm.
Optional high-flow (39.5 gpm) or enhanced high-flow (35.0 gpm) auxiliary hydraulics.

Specifications

Engine

Horsepower90 hp | 67 kW

Loader

Rated Operating Capacity - 50% of Tipping Load4,500 lb | 2 045 kg

SAE operating load3,150 lbs

Tipping load9,000 lbs

Hydraulics

Auxiliary hydraulics3,450 psi (238 bar) – 24.2 gpm (91.5 L/min)

High-flow auxiliary hydraulics (optional)3,450 psi (238 bar) – 39.5 gpm (149 L/min)

Enhanced High-flow auxiliary hydraulics (optional)4,000 psi (276 bar) – 35.0 gpm (132.5 L/min)

Operator Environment (Standard)

ROPS/FOPSLevel 1 canopy w/ side screens

Rear windoww/ emergency escape

Suspension Seatvinyl w/ 2 in (51 mm) retractable 3 point lap seat belt

Rearview mirrorStandard

Other Standard Features

LED lights2 front, 2 side, 2 rear flood

Block heaterStandard

Operator Environment (Optional)

CabEnclosed, fully sealed and pressurized – FSP

RadioAM/FM Bluetooth radio with 2 speakers and USB port

Display8-inch LCD Multi-Function Display

Economy Mode(auto idle shutdown)

ControlsElectro-hydraulic controls

Deluxe seatcloth, air suspension seat, with heater and lumbar support

Ignition TimeoutStandard

Machine Settings User Access LevelsStandard

Operator Security CodesStandard

Drivetrain (Optional)

Creep Speed Mode(for EH machines only)

Service Parts (Optional)

Add-on counterweightsAvailable

Single point lift hookAvailable

AspiratorAvailable

TelematicsAvailable

Cab & Comfort

Built for the Operator

Operator Comfort & Safety

ROPS/FOPS Level 1 canopy with side screens.
Vinyl suspension seat with 3-point lap seat belt.
Optional enclosed cab, fully sealed and pressurized.
Optional deluxe cloth, air suspension seat with heater and lumbar support.

Enhanced Control

Optional 8-inch LCD Multi-Function Display.
Optional Electro-hydraulic controls.
Optional Creep Speed Mode for precise operation.

Gallery

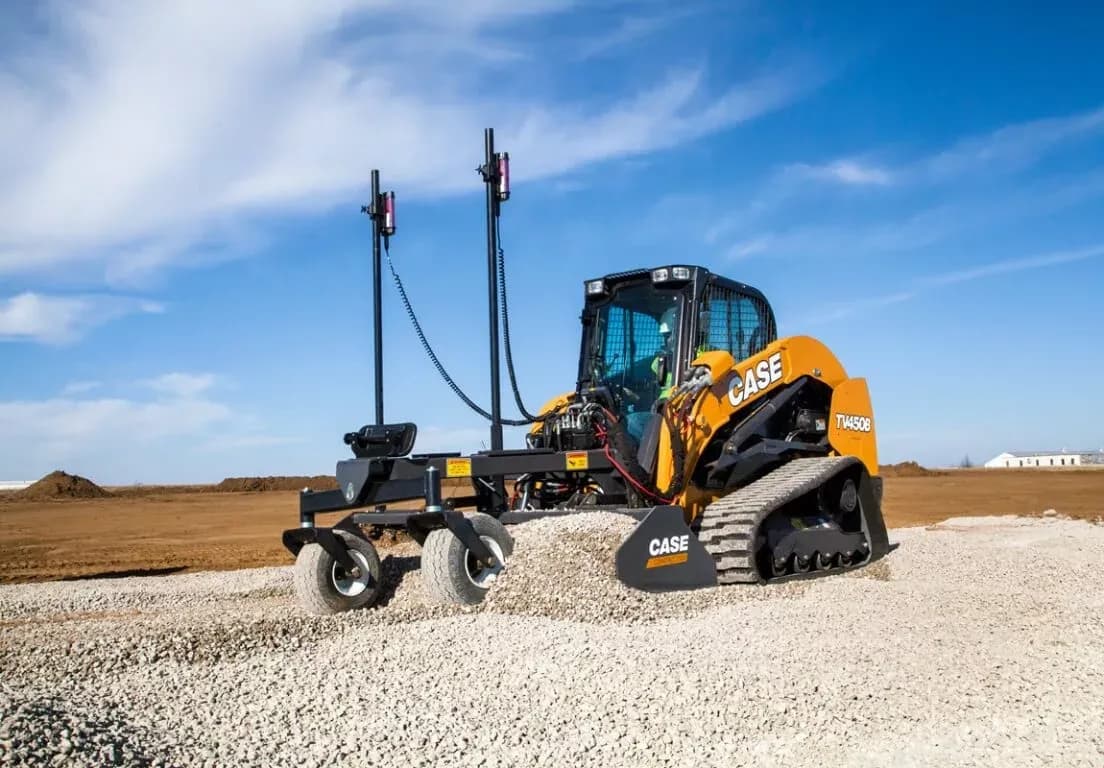

See the TV450B in Action

Get Started

Request a Quote

Tell us what you're looking for and a local Sonsray representative will reach out to you promptly with pricing and availability.

No obligation — just honest answers from equipment experts.
Fast response from your nearest Sonsray location.
Factory pricing, financing options, and trade-in evaluation available.
We carry new, used, and demo equipment across all brands.

Prefer to Talk?

Equipment

First Name *

Last Name *

Email *

Phone

Company / Farm Name

Preferred Location *

Brand

Tell Us What You Need *

By submitting this form you agree to our privacy policy. We will never share your information.

TV450B

STANDOUT FEATURES

TV450B Specs

Powerful Engine

High Lifting Capacity

Versatile Hydraulics

Specifications

Engine

Loader

Hydraulics

Operator Environment (Standard)

Other Standard Features

Operator Environment (Optional)

Drivetrain (Optional)

Service Parts (Optional)

Built for the Operator

Operator Comfort & Safety

Enhanced Control

See the TV450B in Action

Request a Quote

TV450B in Stock

2026 CASE TV450B T4 FINAL 2W5

2026 CASE TV450B T4_FINAL

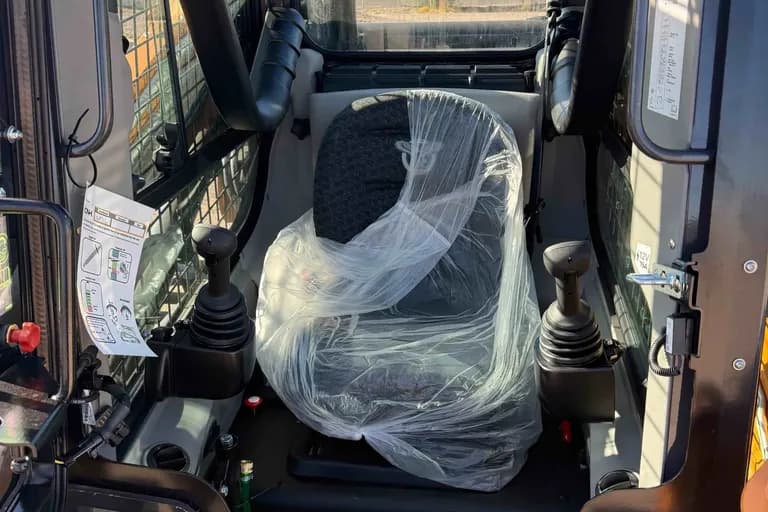

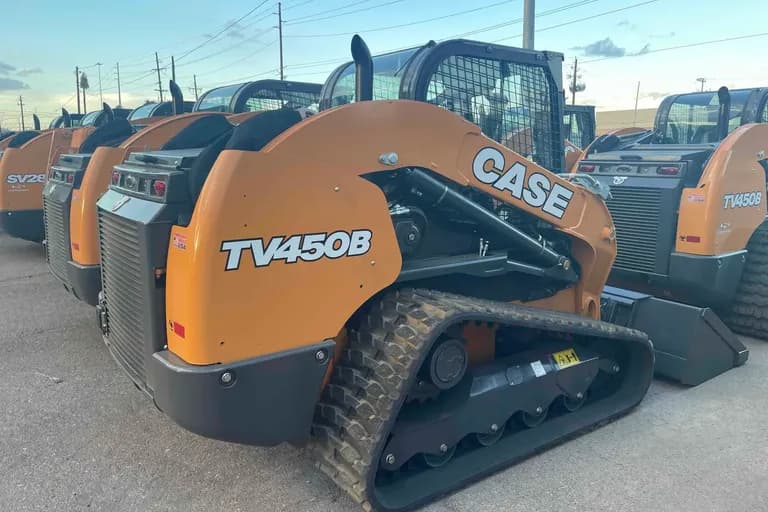

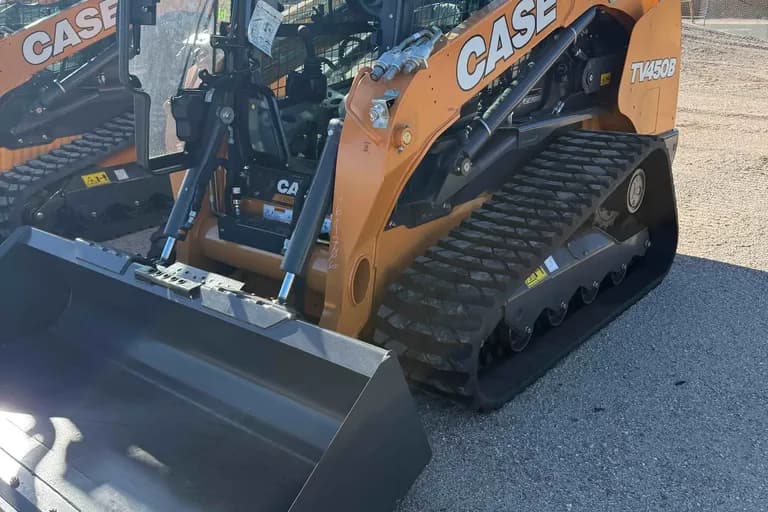

2025 CASE TV450B T4_FINAL

2025 CASE TV450B T4_FINAL

2025 CASE TV450B T4_FINAL

2025 CASE TV450B T4_FINAL

2025 CASE TV450B T4_FINAL

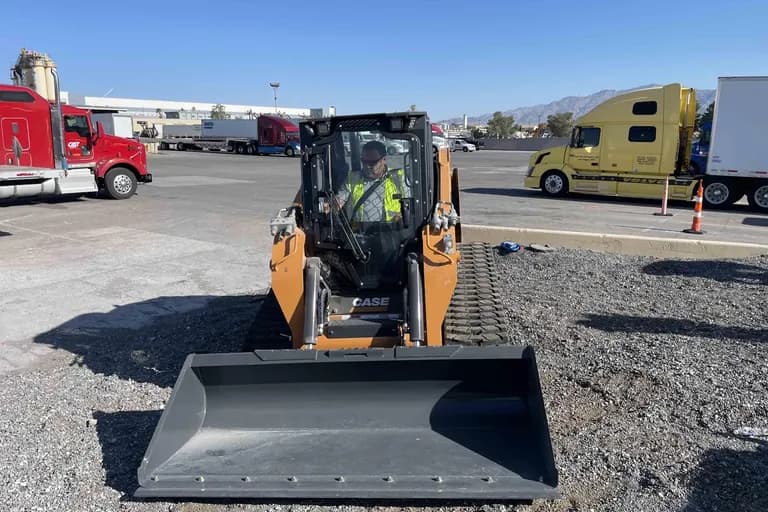

2025 CASE TV450B T4 FINAL

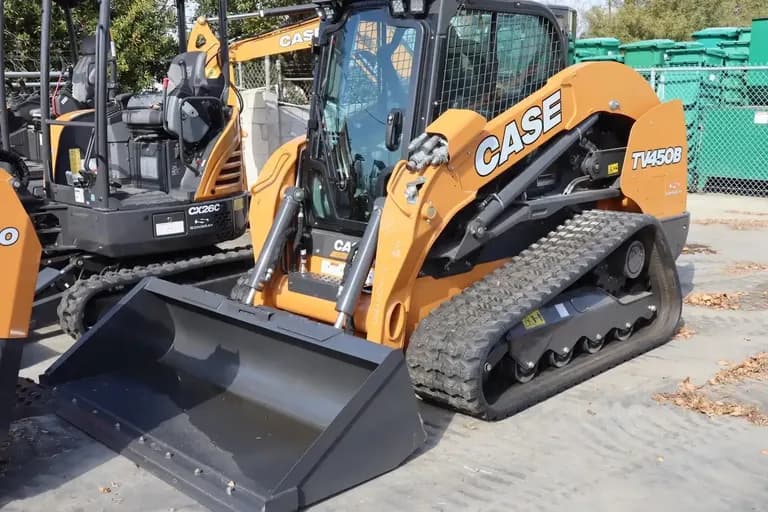

2024 CASE TV450B T4 FINAL

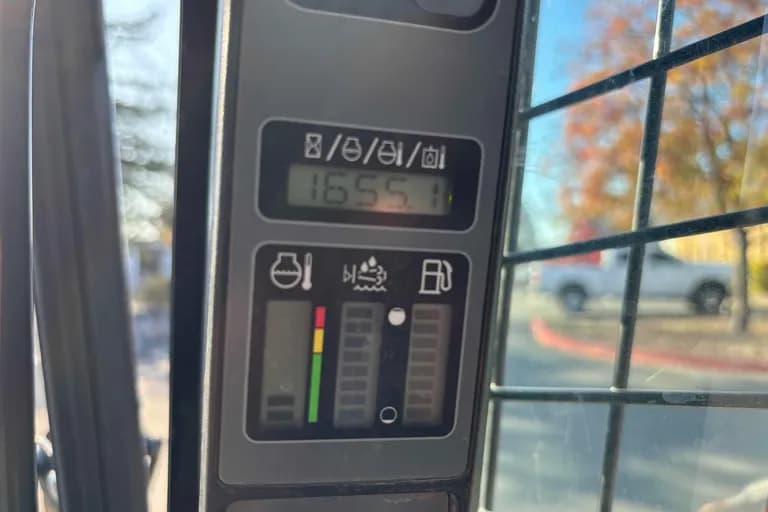

2019 CASE TV450 T4F
