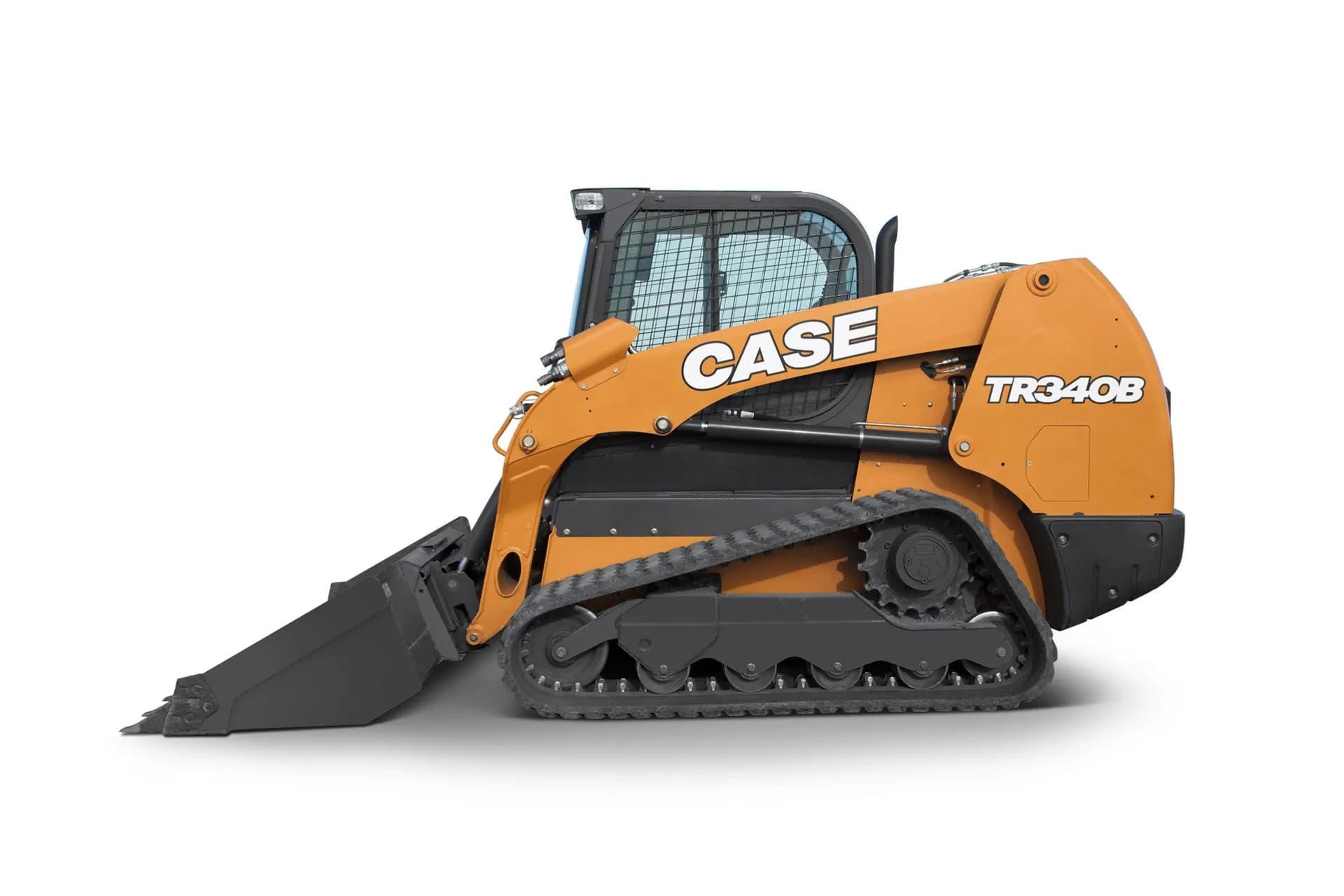

TR340B

Tough jobs, meet CASE power.

The TR340B is the most powerful radial lift compact track loader in the CASE lineup, offering 90 hp and exceptional versatility for earthmoving, fine grading, and material handling.

90 hpHorsepower3,400 lbOperating Capacity282 lb·ftPeak Torque24.2 gpmAuxiliary Flow

Request a Quote View 6 in Inventory

Horsepower

90 hp

Rated Operating Capacity

3,400 lb

Peak Torque

282 lb·ft

Auxiliary Hydraulics

24.2 gpm

Overview

STANDOUT FEATURES

Explore the unique features of the TR340B with the most powerful radial lift in the CASE Compact Track Loader lineup.

Features

Explore TR340B Features

Specifications

TR340B Specs

Powerful Performance

90 hp engine for robust earthmoving capabilities.
Radial lift geometry for excellent digging and loading.
Optional high-flow and enhanced high-flow hydraulics for versatile attachment use.

Specifications

Engine

ModelFPT F5B FL413 D*C001

Displacement207 CID (3.4 L)

CertificationTurbo Tier 4 Final Certified

Gross Horsepower90 hp (67 kW)

Net Horsepower68 hp (51 kW)

Peak Torque282 lb·ft (383 N·m)

Hydraulics

Auxiliary Hydraulics@ 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min)

High-flow Auxiliary Hydraulics (Optional)@ 3,050 psi (210 bar) – 37.6 gpm (142.5 L/min)

Enhanced High-flow Auxiliary Hydraulics (Optional)@ 4,000 psi (276 bar) – 35.0 gpm (132.5 L/min)

Loader

Attachment CouplerManual

Lift GeometryRadial

SAE Operating Load3,400 lbs

Tipping Load6,800 lbs

Operator Environment (Standard)

ROPS/FOPSLevel 1 canopy w/ side screens

Rear Windoww/ emergency escape

SeatSuspension Seat, vinyl w/ 2 in. (51mm) retractable 3 point lap seat belt

Rearview MirrorIncluded

Other Standard Features

LightsLED lights - 2 front, 2 side, 2 rear flood

Engine HeaterBlock heater

Optional Equipment (Operator Environment)

CabEnclosed cab, Fully sealed and pressurized – FSP

RadioAM/FM Bluetooth radio with 2 speakers and USB port

Display8-inch LCD Multi-Function Display

Economy ModeAuto idle shutdown

ControlsElectro-hydraulic controls

Deluxe SeatDeluxe cloth, air suspension seat, with heater and lumbar support

SecurityIgnition Timeout, Machine Settings User Access Levels, Operator Security Codes

Optional Equipment (Drivetrain)

Creep Speed ModeFor EH machines only

Optional Equipment (Other)

BeaconRotating beacon

CounterweightsAdd-on counterweights

TelematicsIncluded

Cab & Comfort

Built for the Operator

Operator Comfort & Control

Enclosed cab with fully sealed and pressurized (FSP) option.
8-inch LCD Multi-Function Display for intuitive control.
Optional deluxe cloth, air suspension seat with heater and lumbar support.
Optional EZ Trac suspension track for a smoother ride.

Gallery

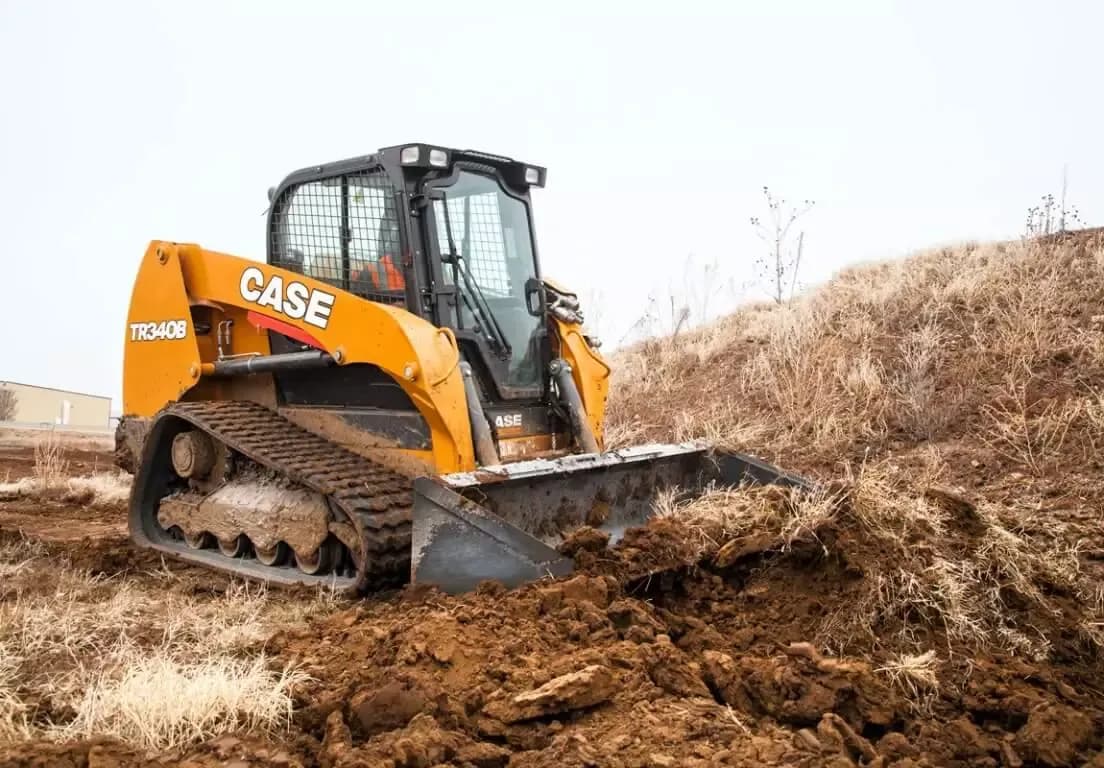

See the TR340B in Action
