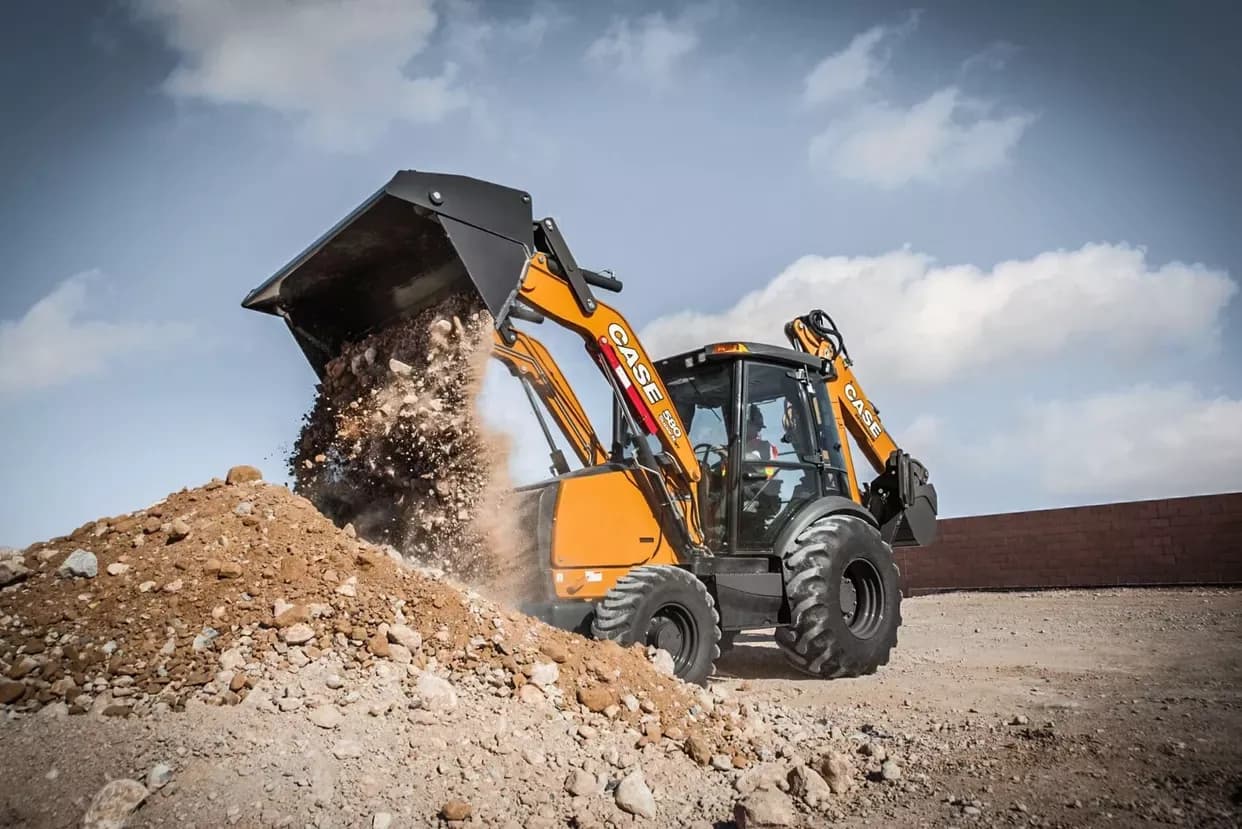

580 Super N WT Construction King™ on a jobsite

580 Super N WT Construction King™

The broadest-shouldered backhoe loader for enhanced stability and power.

The CASE 580 Super N WT Construction King™ Backhoe Loader is the broadest-shouldered machine in our lineup, offering enhanced stability and flotation with its wider stance. It delivers 110 hp, over 15,000 lb. of backhoe bucket breakout force, and a full-height loader lifting capacity of 8,425 lb.

110 hpHorsepower18’ 0”Dig Depth8,425 lbLoader Lift Capacity15,000+ lbBackhoe Breakout
Request a Quote

Horsepower

110 hp

Dig Depth

18’ 0”

Backhoe Breakout Force

15,000+ lb.

Loader Lift Capacity

8,425 lb.

Enhanced Stability

Wider Stance

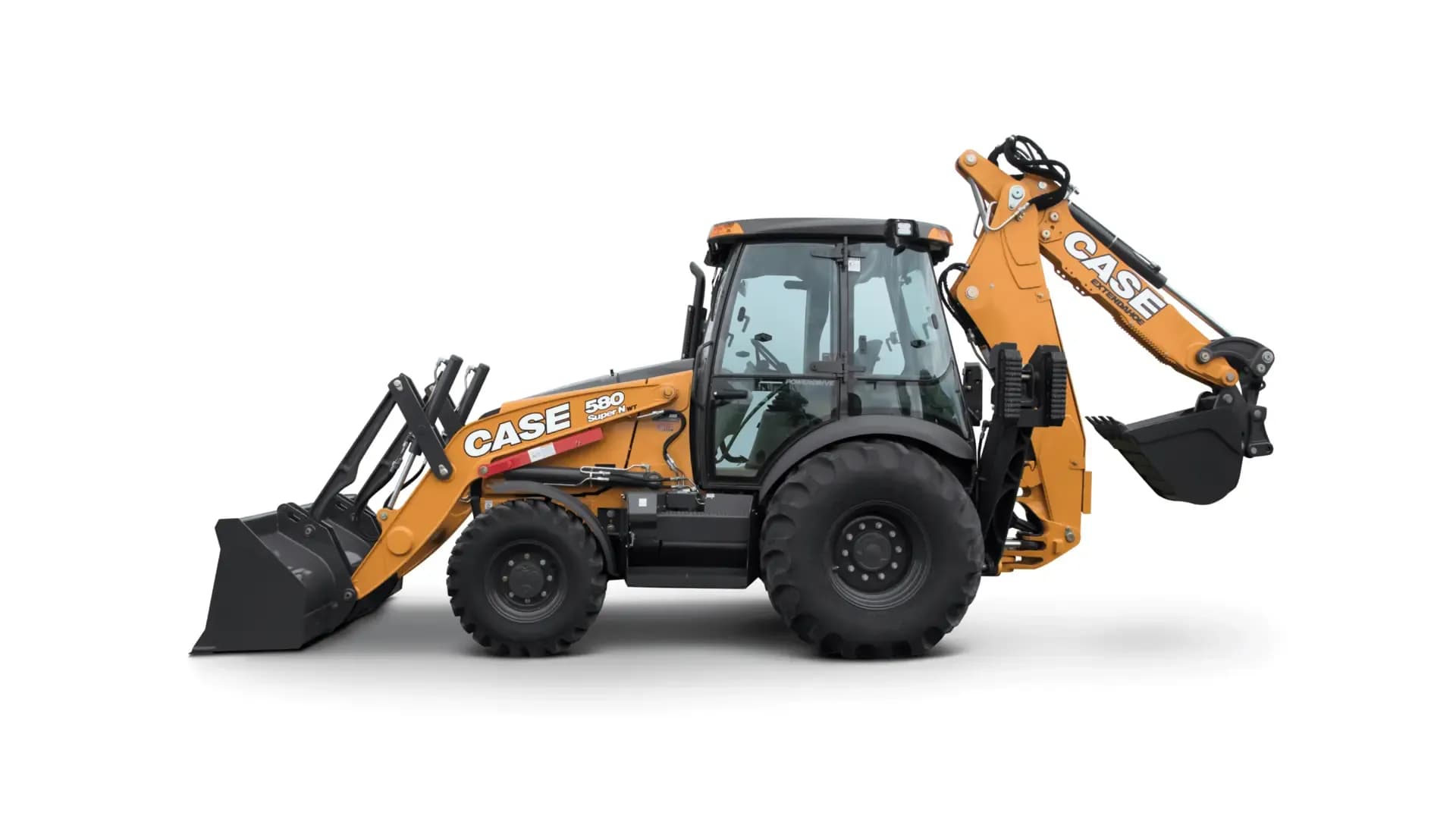

580 Super N WT Construction King™ product image
Overview

DIG DEEPER, DISCOVER MORE

Take a quick tour and get a good look at the features and technology that make the 580 Super N WT Construction King the kind of all-around, highly productive, easy-to-operate workhorse that keeps you running efficiently and making money from the minute the operator climbs into its operator station.

  • Wider stance provides better flotation, lower ground pressure and enhanced stability.
  • Extra power with 110 hp for demanding tasks.
  • High backhoe bucket breakout forces over 15,000 lb. and loader lifting capacity of 8,425 lb.
  • Smooth PowerDrive transmission and ECO Mode for fuel savings.
  • Spacious cab offers comfort and room for operators.
Features

Explore 580 Super N WT Construction King™ Features

Specifications

580 Super N WT Construction King™ Specs

Power and Productivity

  • 110 hp engine for robust performance.
  • Backhoe bucket breakout forces over 15,000 lb. for tough digging.
  • Full-height loader lifting capacity of 8,425 lb.
  • PowerLift feature enhances backhoe lifting capacity to 3,761 lb.

Efficiency and Control

  • Smooth PowerDrive transmission with auto shift mode and direct drive.
  • ECO Mode for significant fuel savings.
  • PowerBoost for extra power in challenging conditions.
  • Single lever 4-function loader control for precise operation.

Specifications

Engine

EngineFPT F5 diesel
EmissionsSelective Catalytic Reduction – SCR
Oil FilterFull flow engine oil filter
ShutdownAuto Engine Shutdown

Drivetrain

TransmissionPowerDrive H-Type, 4F-4R, hydraulic clutch shifting, kick down, transmission disconnect and FNR switch in loader control lever, includes auto shift mode and direct drive

Loader

ControlSingle lever 4-function loader control: lift, dump, clutch cut-out, differential lock and FNR switch
FeaturesBucket position indicator, Lifting lugs and tie downs on standard bucket, Single lever control with parallel lift and return-to-dig, Hand operated clutch disconnects on loader and shift levers

Backhoe

Boom DesignOver center over-lapping cylinder boom design
Stabilizer PadsCleated dirt stabilizer pads
SystemPro Control System
DipperstickIntegrated serrated gripper teeth
CouplerCase mechanical coupler
LiftingPower Lift
PowerPower Boost
ReachExtendahoe®

Operator Environment (Standard)

SafetyROPS/FOPS certified protective canopy
SeatMechanical suspension seat – 180° swivel – Vinyl

Operator Environment (Optional)

CabROPS/FOPS certified protective cab available in LH Door with heat, A/C, defroster, door activated dome light, 4 front, 4 rear and 2 adjustable side lights, floor mat, tinted glass, bluetooth radio, front and rear wiper and fender extension
SteeringComfort Steering with 3rd/4th gear cutout
Deluxe Cab PackageIncluded on 2-door cabs includes: deluxe interior, viscous fan, pull-down sun visor and 72 dba sound level
Premium SeatPremium multi-color, hand stitched cloth, heated air suspension seat – not for use with ROPS Canopy option

Other

HoodForward tilt engine hood
LightsAdjustable halogen Working/Driving Lights (55W) – cab and canopy: 4 front 4 rear 2 side - one left, one right
TelematicsmyCASEConstruction – includes hardware and a 7-yr Advanced data subscription
Cab & Comfort

Built for the Operator

Operator Comfort & Safety

  • Spacious cab with ample room to spread out.
  • ROPS/FOPS certified protective canopy (standard) or cab (optional).
  • Optional deluxe cab with heat, A/C, defroster, and Bluetooth radio.
  • Optional heated air suspension seat for enhanced comfort.
