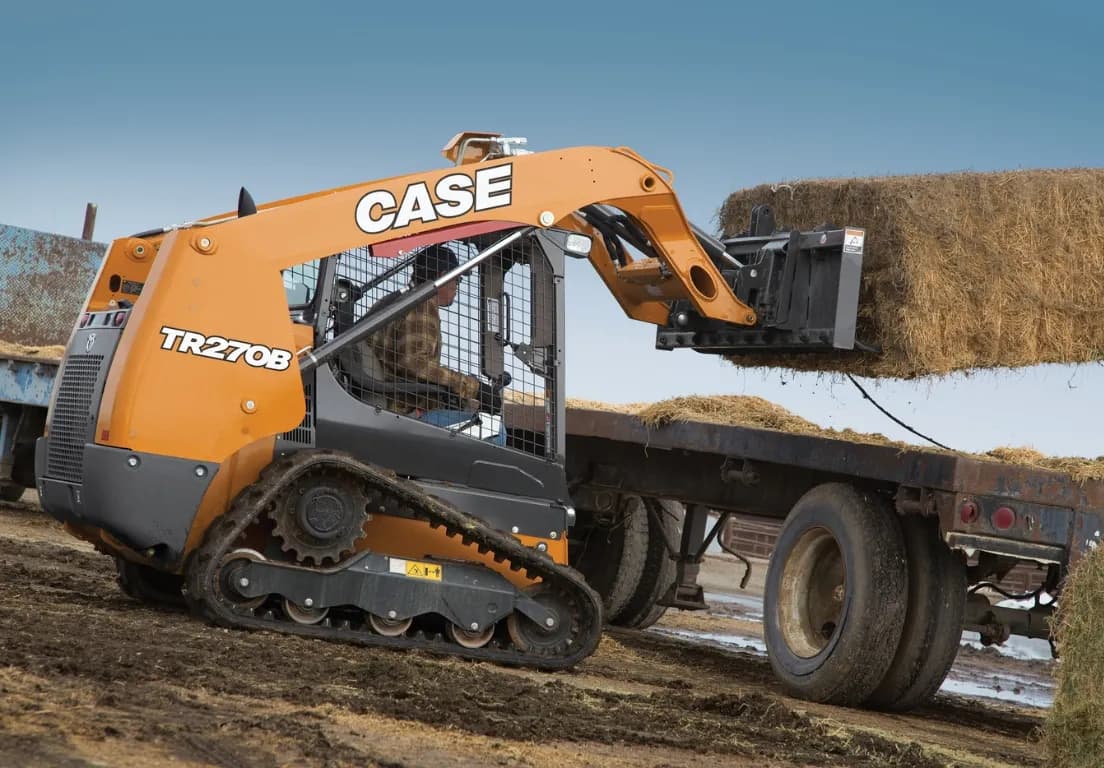

Bale Spears on a jobsite

Bale Spears

Move and stack large square or round bales, easily and effectively.

CASE Bale Spears attachments are designed to easily and effectively move and stack large square or round bales.

4,000 lbsMax LoadUp to 2-1/8"Main Spear DiameterSkid Steer, CTL, CWL, Backhoe, TLCompatibility
Request a Quote

Max Load Capacity

Up to 4,000 lbs

Spear Material

Forged, Tapered Steel

Main Spear Length

Up to 49 inches

Mounting

Universal Plate Included

Bale Spears product image
Overview

Versatile Bale Handling for Your Fleet

CASE Bale Spears attachments are engineered to provide efficient and secure handling of both large square and round bales. Designed for compatibility with a range of CASE equipment, including Skid Steer/Compact Track Loaders, Compact Wheel Loaders, and Backhoe/Tractor Loaders, these attachments offer the flexibility needed for diverse operations. Each spear configuration is built with high-quality, forged steel to ensure durability and reliable performance, making bale management simpler and more productive.

  • Efficiently move and stack large square or round bales.
  • Multiple configurations available for various bale sizes and weights.
  • Durable, forged, tapered spears for secure bale handling.
  • Compatible with Skid Steer/Compact Track Loaders, Compact Wheel Loaders, and Backhoe/Tractor Loaders.
  • Includes universal mounting plate for plug-and-play readiness.
Features

Explore Bale Spears Features

Specifications

Bale Spears Specs

Efficient Bale Handling

  • Designed for quick and easy movement of large square and round bales.
  • Minimizes bale damage during transport and stacking.

Robust Construction

  • Forged, tapered spears ensure maximum strength and durability.
  • Stabilizer spikes provide secure bale retention during operation.

Specifications

Skid Steer / Compact Track Loaders

Single Tine Standard Duty Load Rating2,000 lbs @ 24" load center
Single Tine Standard Duty Main Spear1-1/4" diameter × 44"
Single Tine Standard Duty Stabilizer SpikesDual 1-1/4" diameter × 19"
Single Tine Heavy-Duty Load Rating3,000 lbs @ 24" load center
Single Tine Heavy-Duty Main Spear2-1/8" diameter × 49"
Single Tine Heavy-Duty Stabilizer SpikesDual 1-1/4" diameter × 19"
Dual Tine Heavy-Duty Load Rating4,000 lbs @ 24" load center
Dual Tine Heavy-Duty Main SpearsDual 2-1/8" diameter × 49"
Dual Tine Heavy-Duty Stabilizer SpikeSingle 1-1/4" diameter × 19"
Three Tine Bale Spears Load Rating4,000 lbs @ 24" load center
Three Tine Bale Spears Main SpearsThree 1-3/4" diameter
Three Tine Bale Spears Length Options27" or 44"
Square Bale Spears Configuration32" x 3
Square Bale Spears 32" Tine Load Rating1,795 lbs
Round Bale Spear 32" Tine Load Rating1,795 lbs
Round Bale Spear 48" Tine Load Rating3,485 lbs
Plug & Play ReadyIncludes universal mounting plate

Compact Wheel Loaders

Single Tine Standard Duty Load Rating3,000 lbs @ 24" load center
Single Tine Standard Duty Main SpearSingle tapered, forged, 2-1/8" dia. × 49"
Single Tine Standard Duty Stabilizer SpikesDual 1-1/4" dia. × 19"
Dual Tine Bale Spears Load Rating4,000 lbs @ 24" load center
Dual Tine Bale Spears Main SpearSingle tapered, forged, 2-1/8" dia. × 49"
Dual Tine Bale Spears Stabilizer SpikesDual 1-1/4" dia. × 19"
Three Tine Bale Spears Load Rating4,000 lbs @ 24" load center
Three Tine Bale Spears Main SpearsThree tapered, forged, 1-3/4" diameter
Three Tine Bale Spears Length Options27" or 44"
Square Bale Spears Configuration32" x 3
Square Bale Spears 32" Tine Load Rating1,795 lbs
Round Bale Spear 32" Tine Load Rating1,795 lbs
Round Bale Spear 48" Tine Load Rating3,485 lbs
Plug & Play ReadyIncludes universal mounting plate

Backhoe / Tractor Loaders

Dual Tine Bale Spears Load Rating4,000 lbs @ 24" load center
Dual Tine Bale Spears Main SpearsDual tapered, forged, 2-1/8" diameter × 49"
Dual Tine Bale Spears Stabilizer SpikeSingle 1-1/4" diameter × 19"
Gallery

See the Bale Spears in Action

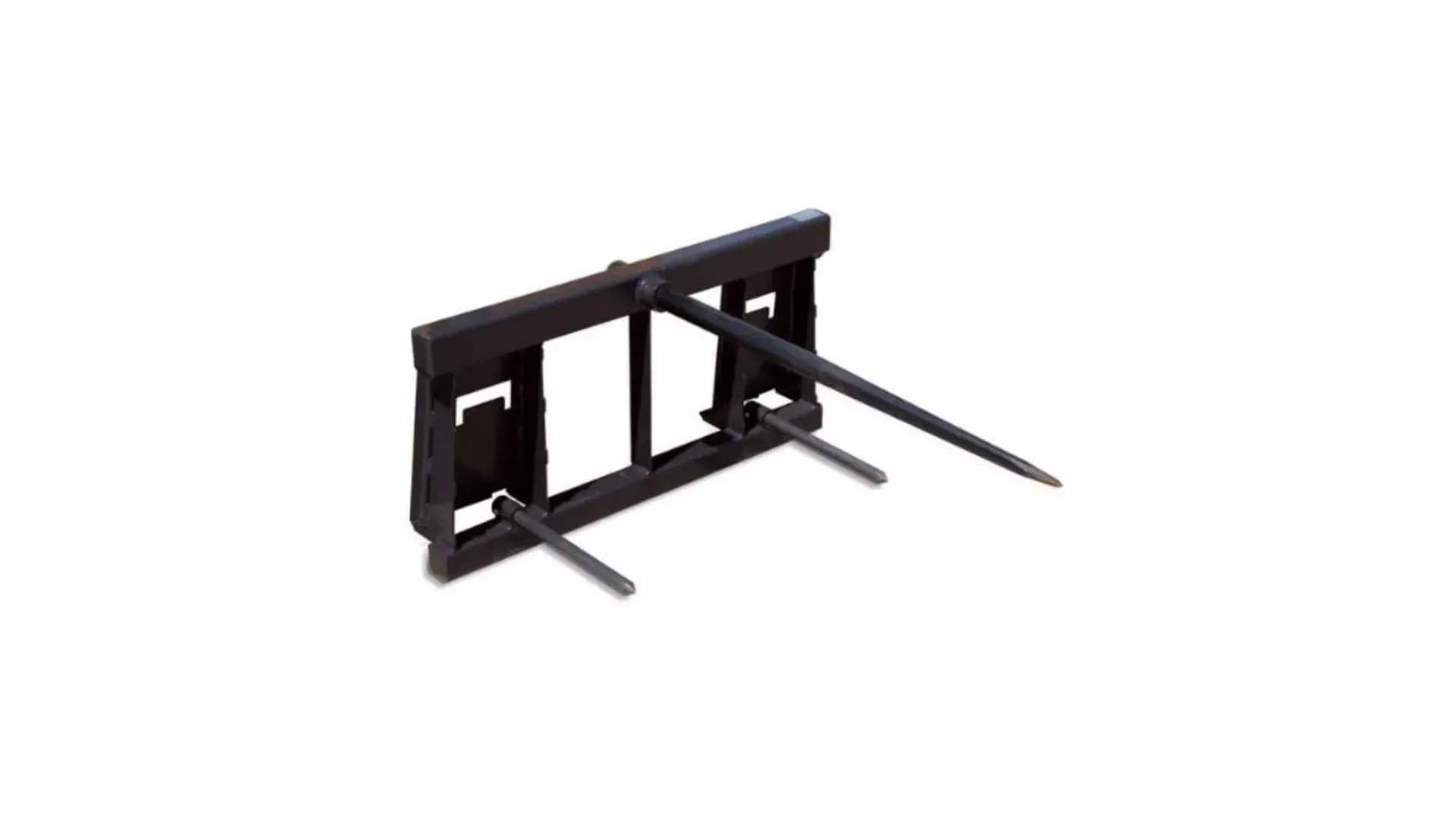

Bale Spears photo 1
