CASE 580EV
Meet the world’s first electric backhoe loader.

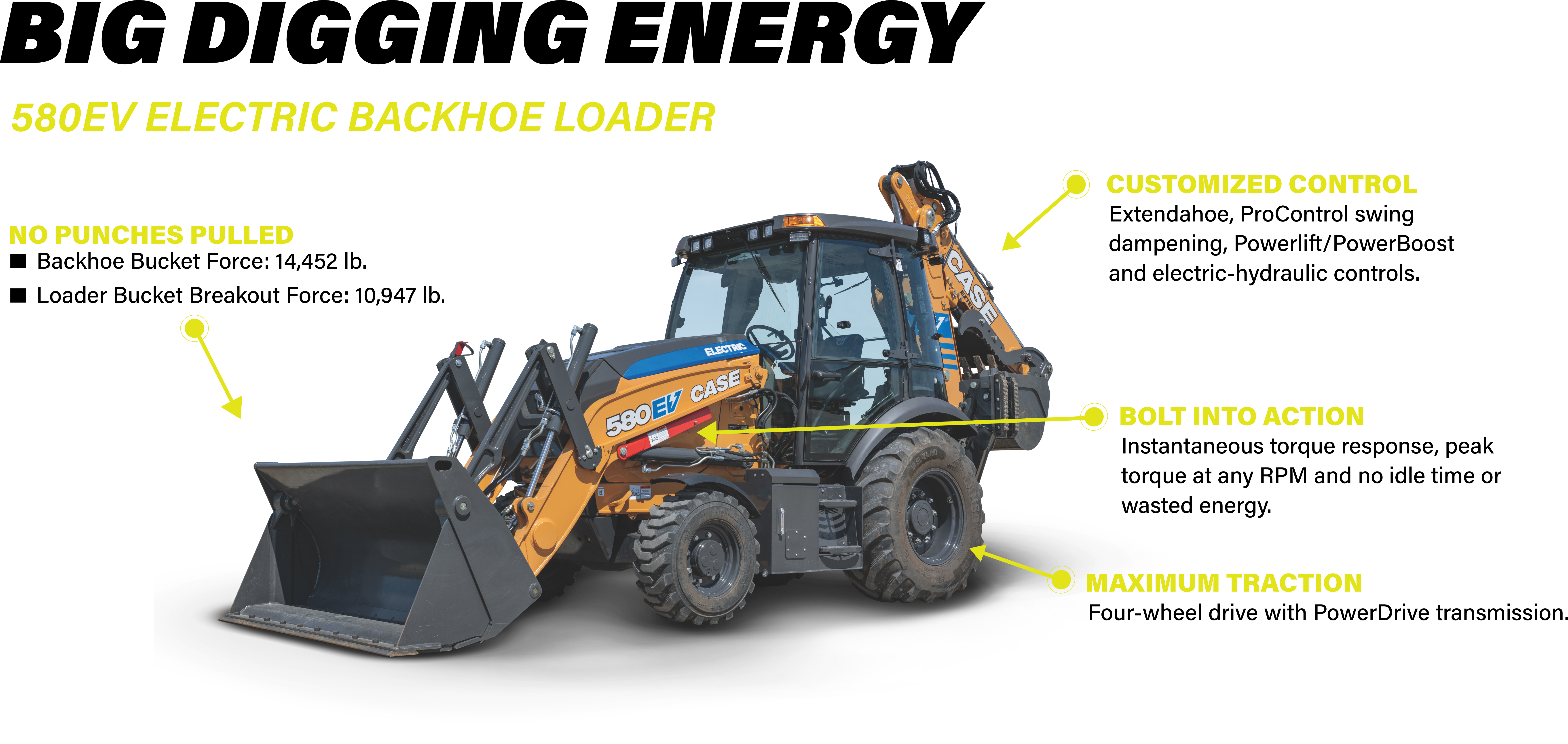

580EV Electric Backhoe Loader
Built in response to customer demand, it’s ideal for urban jobsites, municipalities, and utility work where clean, quiet operation matters most. The 580EV delivers diesel-like power, performance, loader lift, and backhoe force — without emissions or noise. Backed by over 60 years of CASE backhoe innovation, this electric machine is built to dominate the jobsite. Experience the future of construction today.
71 kWh
Operating Weight
19,947 lb | 9,048 kg
Explore the 580EV
Incredible Service Benefits
You’ll see that once you start crunching the numbers on the amount of service cost and service downtime it saves you. Because there’s no internal combustion engine to service. This is a key benefit of EV, and something you should be sure not to overlook when you’re calculating the total cost of ownership for this machine.
Charging Options
The charging requirements for the 580EV are straightforward.
You can plug it into any J1772 Level 2 automotive style charger. The J1772 Level 2 charging plug is available at numerous public charging stations. Or if preferred, CASE offers a range of charging solutions customers can equip their own shop with.
No Idle Time
The 580EV only uses energy when it’s performing work.
One more great thing about an electric machine is that if it’s not doing something, it’s not running. This means there’s minimal energy being wasted, components wearing, or noise created by an idling engine. So, you don’t have to worry about anti-idling ordinances. It also maximizes the amount of work you can do on a charge. Best of all, workers no longer have to yell over engine noise to be heard, ensuring a safer and more pleasant job site.
Advanced Telematics
Two-way communication and remote diagnostics.
The 580EV incorporates our next generation of telematics modem technology. It gives you data that’s easy to engage with and easy to understand so you can keep it performing in tip-top condition.
8-in Touchscreen Display
The 580EV is the leading edge of backhoe loader tech.
It comes with an 8-in, full-color touchscreen display that puts everything at the operator’s fingertips.
Power All Attachments
If it works on a CASE N Series backhoe loader, it works on the 580EV.
When it comes to the attachments you can work with, you can be rest assured that CASE EV is no different than diesel. It will pick up any CASE N Series attachment and take on any job you can do with a backhoe loader.
EV Care Program
The 580EV comes with a 3-year/3,000-hour EV Care package.
All scheduled maintenance is included in the purchase price. Your CASE dealer is committed to supporting your business and this new evolution of equipment.
Standard 4-Corner LED Strobes
These strobes provide customers to select both color and pattern to meet their job needs. They even have an “always on” feature which provides four extra work lights in low-light conditions.
Electric Warranty System
You get 3 years/3,000 hours of electrical system protection. That means worry-free operation knowing your electric motor, battery and the rest of the high voltage electrical system is protected.
Check Out This Amazing Offer
ATT: CALIFORNIA RESIDENTS
For a limited time, take advantage of a $290,000 incentive on the new CASE 580EV Electric Backhoe Loader from California CORE.
AN ENERGIZING EXPERIENCE IN THE CAB
CRUSHING IT IN THE COMFORT ZONE
- Heat and Air conditioning
- 8-inch touchscreen color display
- Keyless start and Operator Codes
- Work Modes and Sensitivity Settings
- Deluxe Heated Seat
A BEACON OF INGENUITY
- Multicolored
- 4-corner LED strobes with adjustable colors
- Strobe patterns
- An always-on feature for extra work lights.
FUTURE-PROOFED PERFORMANCE
- Advanced telematics with two-way communication
- Remote diagnostics
- 3-year/3000-hour EV CARE maintenance package
- 3-year/3000-hour EV battery & components warranty.
PLUGGING INTO ELECTRIC POWER
THE POWERHOUSE
- 400-volt, 71-kilowatt-hour lithium-ion battery
- 4-8 Hours operational run time depending on the application
ALL CHARGED UP
- Level 2 J1772 automotive charging
- Charge from 0 to 100% in about 7.5 hours
PURPOSE-BUILT INNOVATION
ACROSS-THE-BOARD OPTIMIZATION
- Improved performance to match 580SN
- Advanced, multicircuit thermal management system
- Electro-hydraulic loader & backhoe controls
- Two independent electric motors
- PowerDrive PowerShift transmission
CASE 580EV Specs
CASE 580EV
Backhoe Type – Center Pivot
Rated Output – 108HP/80kW
Transmission Type – Power Shift
Number of Travel Speeds – 4F—4R
DIMENSIONS
Extending Stick — Yes
Maximum Dig Depth — 17ft 11in / 5470 mm
Dump Height — 8ft 10in / 2690mm
CAPACITIES, PERFORMANCE, AND WEIGHTS
Bucket Capacity — 1yd³ / 0.79m³
Bucket Breakout — 10947lb/ 49.65kN
Operating Weight — 19947lbs /9048kg
$290,000 California CORE Voucher
Take advantage of an incredible opportunity through the California CORE program! For a limited time, customers purchasing a 580EV backhoe loader can receive a base voucher amount of $290,000. This offer is available while supplies last, so act quickly to maximize your savings. To take advantage of this promotion, simply sign up below and speak with your local store manager, who will guide you through the process and ensure you receive this valuable incentive. Don’t miss out on this limited-time offer—sign up today!
